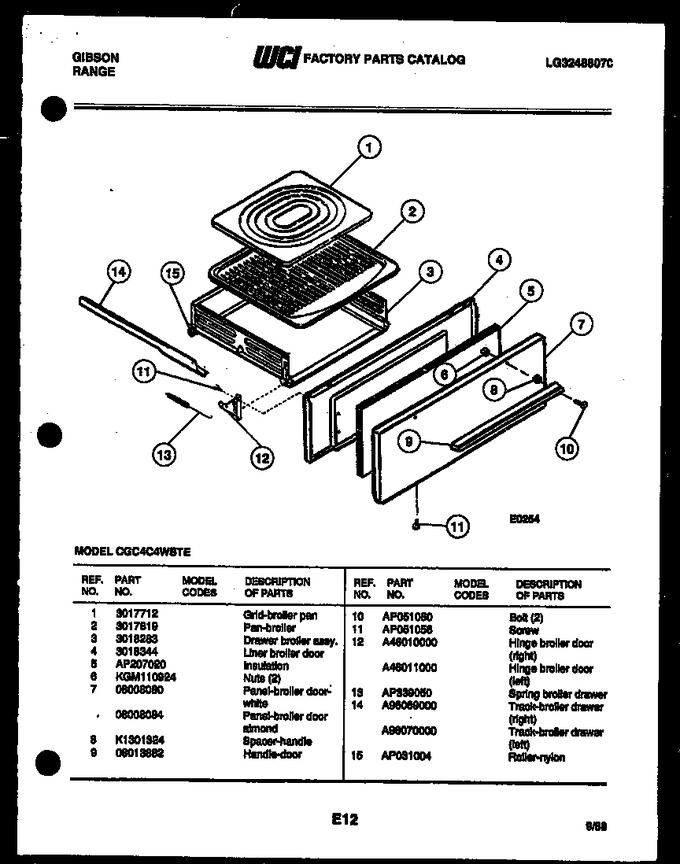

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3017712 | Grid-broiler Pan |
|
- | |||||
| 2 | 3017819 | Pan - Broiler |
|
- | |||||
| 3 | 3018283 | Drawer-broiler Assy. |
|
- | |||||
| 4 | 3018344 | Liner Broiler Door |
|
- | |||||
| 5 | AP207020 | Insulation |
|
- | |||||
| 6 | KGM110924 | Nuts (2) |
|
- | |||||
| 7 | 08008084 | Panel-broiler (almond) |
|
- | |||||
| 7 | 08008080 | Panel-broiler (white) |
|
- | |||||
| 8 | K1301324 | Spacer-handle |
|
- | |||||
| 9 | 08013882 | Handle Door |
|
- | |||||
| 10 | AP051060 | Bolt (2) |
|
- | |||||
| 11 | AP051056 | Screw |
|
- | |||||
| 12 | A46010000 | Hinge Broiler Door (right) |
|
- | |||||
| 13 | AP339050 | Spring Broiler Drawer |
|
- | |||||
| 14 | A96069000 | Track-broiler Drawer (right) |
|
- | |||||
| 15 | AP031004 | Roller-nylon |
|
- | |||||
| 12A | A46011000 | Hinge Broiler Door (left) |
|
- | |||||
| 14A | A96070000 | Track-broiler Drawer (left) |
|
- |
