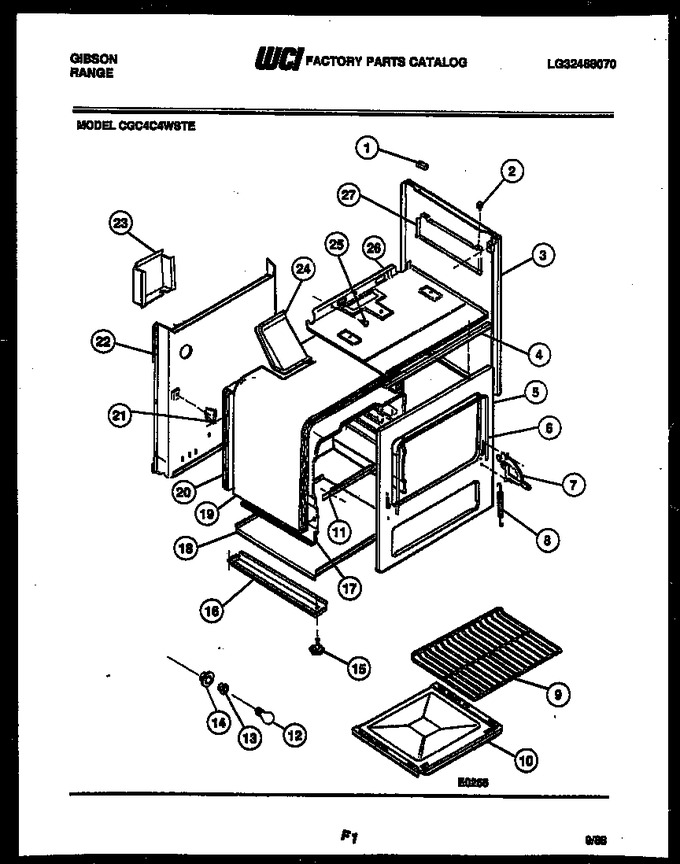

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3016129		Grommet Main Top		Appelez-nous	-
2	AP172002		Grommet		Appelez-nous	-
3	3051061		Pnl. Bodyside-white		Appelez-nous	-
3	A64013004		Pnl. Bodyside-almond		Appelez-nous	-
4	A74076000		Support, Control Pnl.		Appelez-nous	-
5	3017790		Front Frame		Appelez-nous	-
6	AP326052		Seal - Oven Door		Appelez-nous	-
7	3051077		Hinge-oven Door (right)		Appelez-nous	-
8	08008028		Spring - Oven Door		Appelez-nous	-
9	3015714		Rack-oven		Appelez-nous	-
10	3018282		Oven Bottom		Appelez-nous	-
11	3131038		Support - Oven Bttm		Appelez-nous	-
12	K1186186		Bulb-oven Light		Appelez-nous	-
13	K1325527		Recept. Oven Light		Appelez-nous	-
14	3051511		Cup, Oven Light				$ 60.22
15	AP059009		Leveling Leg		Appelez-nous	-
16	A98373000		Base Rail		Appelez-nous	-
17	3018709		Liner-oven (right)		Appelez-nous	-
18	3011645		Bttm. Main		Appelez-nous	-
19	3017171		Insulation - Wrap		Appelez-nous	-
20	3017172		Insulation - Back		Appelez-nous	-
21	3051096		Support-oven		Appelez-nous	-
22	A05087000		Main Back		Appelez-nous	-
23	A32137000		Cover		Appelez-nous	-
24	3017173		Vent Box		Appelez-nous	-
25	AP074001		Snap Bushing		Appelez-nous	-
26	3017174		Bottom Burner Box		Appelez-nous	-
27	3051053		Shield Burner Box (right)		Appelez-nous	-
*10796	3009582		Clip-body Side		Appelez-nous	-
*10796	08068034		Brkt Install.		Appelez-nous	-
17A	3018710		Liner-oven (left)		Appelez-nous	-
17B	3018713		Liner-oven (top)		Appelez-nous	-
17C	3018712		Liner-oven Back		Appelez-nous	-
27A	3051054		Shield Burner Box (left)		Appelez-nous	-
7A	A96068000		Hinge-oven Door (left)		Appelez-nous	-
