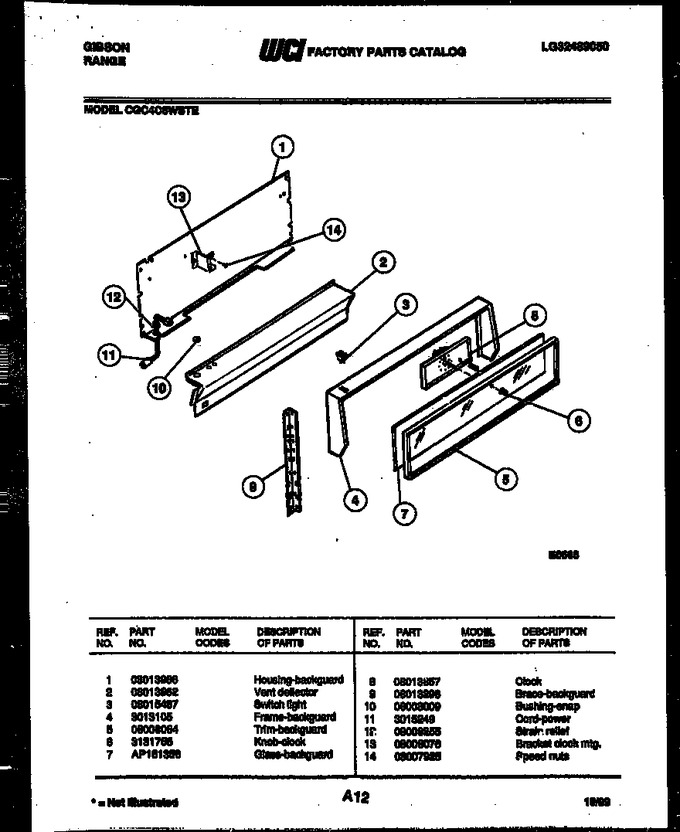

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08013966 | Housing-backguard |
|
- | |||||
| 2 | 08013962 | Vent - Deflector |
|
- | |||||
| 3 | 08015487 | Switch-light |
|
- | |||||
| 4 | 3013105 | Frame-backguard |
|
- | |||||
| 5 | 08008064 | Trim Backguard |
|
- | |||||
| 6 | 3131756 | Knob - Clock |
|
- | |||||
| 7 | AP161356 | Glass-backguard |
|
- | |||||
| 8 | 08013857 | Clock |
|
- | |||||
| 9 | 08013296 | Brace-backguard |
|
- | |||||
| 10 | 08008009 | Bushing,snap |
|
- | |||||
| 11 | 3015249 | Cord - Power |
|
- | |||||
| 12 | 08008255 | Strain - Relief |
|
- | |||||
| 13 | 08008076 | Bracket Clock Mtg |
|
- | |||||
| 14 | 08007925 | Nut - Speed |
|
- |
