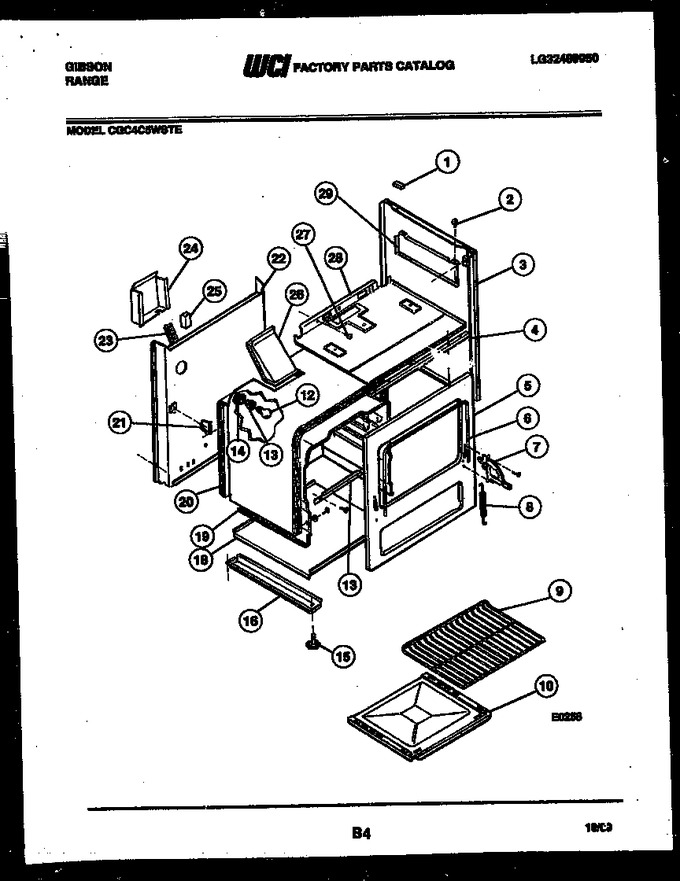

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3016129		Grommet Main Top		Appelez-nous	-
2	3051063		Grommet		Appelez-nous	-
3	3051061		Panel-bodyside White		Appelez-nous	-
3	A64013004		Panel Bodyside Almond		Appelez-nous	-
4	3131811		Support-control Panel		Appelez-nous	-
5	3205578		Front - Frame		Appelez-nous	-
6	08008022		Seal-oven Door		Appelez-nous	-
7	3204670		Hinge-oven Door (rt)		Appelez-nous	-
8	08008028		Spring - Oven Door		Appelez-nous	-
9	3015714		Rack-oven		Appelez-nous	-
10	3018282		Liner-oven Bttn.		Appelez-nous	-
11	3131038		Support-oven Bttn.		Appelez-nous	-
12	3001179		Bulb Oven Light		Appelez-nous	-
13	3009410		Receptacle-oven Light		Appelez-nous	-
14	3051511		Cup, Oven Light				$ 60.22
15	3051080		Leveling Leg		Appelez-nous	-
16	08068047		Base Rail		Appelez-nous	-
17	3018709		Liner - Rt Side		Appelez-nous	-
18	3011645		Bottom - Main		Appelez-nous	-
19	3017171		Insulation - Wrap		Appelez-nous	-
20	3017172		Insulation - Back		Appelez-nous	-
21	3051096		Support,oven Rear		Appelez-nous	-
22	3013340		Main Back		Appelez-nous	-
23	3131046		Channel - Wire		Appelez-nous	-
24	08013953		Cover-spark Module		Appelez-nous	-
25	3200669		Spark Module		Appelez-nous	-
26	3017173		Vent Box		Appelez-nous	-
27	08008051		Bushing - Nylon Snap		Appelez-nous	-
28	3017174		Bottom Burner Box		Appelez-nous	-
29	3131053		Shield Burner Box (rt)		Appelez-nous	-
*19874	3131041		Anti-tip Kit		Appelez-nous	-
*19874	3131791		Clip,bodyside				$ 19.01
17A	3018710		Liner - Lt Side		Appelez-nous	-
17B	3018713		Liner-top		Appelez-nous	-
17C	3018712		Liner-back		Appelez-nous	-
29A	3131054		Shield Burner Box (lt)		Appelez-nous	-
7A	3204672		Hinge-oven Door (lt)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
