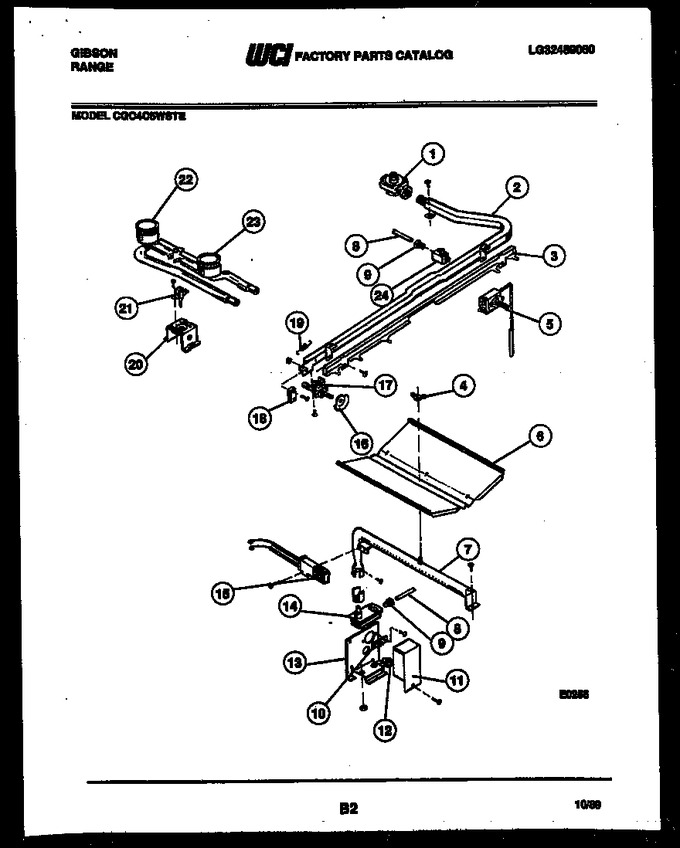

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08007974 | Pressure Regulator |
|
- | |||||
| 2 | 08013906 | Manifold Pipe |
|
- | |||||
| 3 | A66018000 | Slide Bar |
|
- | |||||
| 4 | 08007979 | Wing Nut |
|
- | |||||
| 5 | 08013926 | Thermostat |
|
- | |||||
| 6 | 3131061 | Baffle-oven Burner |
|
- | |||||
| 7 | 3202752 | Burner - Oven |
|
- | |||||
| 8 | 3009495 | Tube - Oven Feed |
|
- | |||||
| 9 | 3131064 | Loxit Nut |
|
- | |||||
| 10 | 08007985 | Terminal Block |
|
- | |||||
| 11 | 3131088 | Cover - Oven Safety Valve |
|
- | |||||
| 12 | 08008051 | Bushing - Nylon Snap |
|
- | |||||
| 13 | 3131069 | Support - Oven Valve |
|
- | |||||
| 14 | 08009419 | Valve - Safety |
|
- | |||||
| 15 | 12400035 | Ignitor - Oven (Replaces: 08009420) |
|
Immediately | $ 60.44 | ||||
| 16 | 08008002 | Cam - Top Burner (4) |
|
- | |||||
| 17 | 3131057 | Valve - Top Burner |
|
- | |||||
| 18 | 3131094 | Switch - Micro |
|
- | |||||
| 19 | 3131096 | Spring - Slide Bar |
|
- | |||||
| 20 | 3203964 | Support - Top Burner |
|
- | |||||
| 21 | 3015196 | Igniter Top Burner |
|
- | |||||
| 22 | 3131079 | Burner - Top Rear |
|
- | |||||
| 23 | 3131080 | Burner - Top Front |
|
- | |||||
| 24 | 3131099 | Valve - Shut Off |
|
- | |||||
| *19867 | 9216 | Clip-capillary |
|
- |
