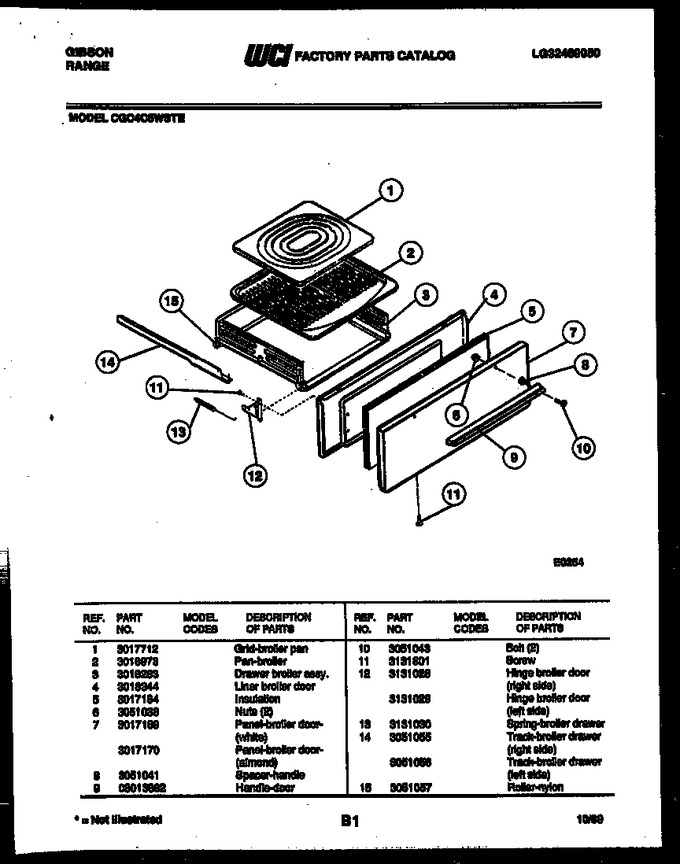

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Backguard
03 - Cooktop Parts
04 - Door Parts
05 - Broiler Drawer Parts
06 - Burner Parts
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3017712 | Grid-broiler Pan |
|
- | |||||
| 2 | 3016973 | Pan-broiler |
|
- | |||||
| 3 | 3018283 | Drawer-broiler Assy. |
|
- | |||||
| 4 | 3018344 | Liner Broiler Door |
|
- | |||||
| 5 | 3017184 | Insulation |
|
- | |||||
| 6 | 3051038 | Nuts (2) |
|
- | |||||
| 7 | 3017170 | Panel-broiler Door-(almond) |
|
- | |||||
| 7 | 3017169 | Panel-broiler Door-(white) |
|
- | |||||
| 8 | 3051041 | Spacer-handle |
|
- | |||||
| 9 | 08013882 | Handle Door |
|
- | |||||
| 10 | 3051043 | Bolt (2) |
|
- | |||||
| 11 | 3131801 | Screw |
|
- | |||||
| 12 | 3131028 | Hinge Broiler Door (right Side) |
|
- | |||||
| 13 | 3131030 | Spring Broiler-drawer |
|
- | |||||
| 14 | 3051055 | Track-broiler Drawer (right Side) |
|
- | |||||
| 15 | 3051057 | Roller-nylon |
|
- | |||||
| 12A | 3131029 | Hinge Broiler Door (left Side) |
|
- | |||||
| 14A | 3051056 | Track-broiler Drawer (left Side) |
|
- |
