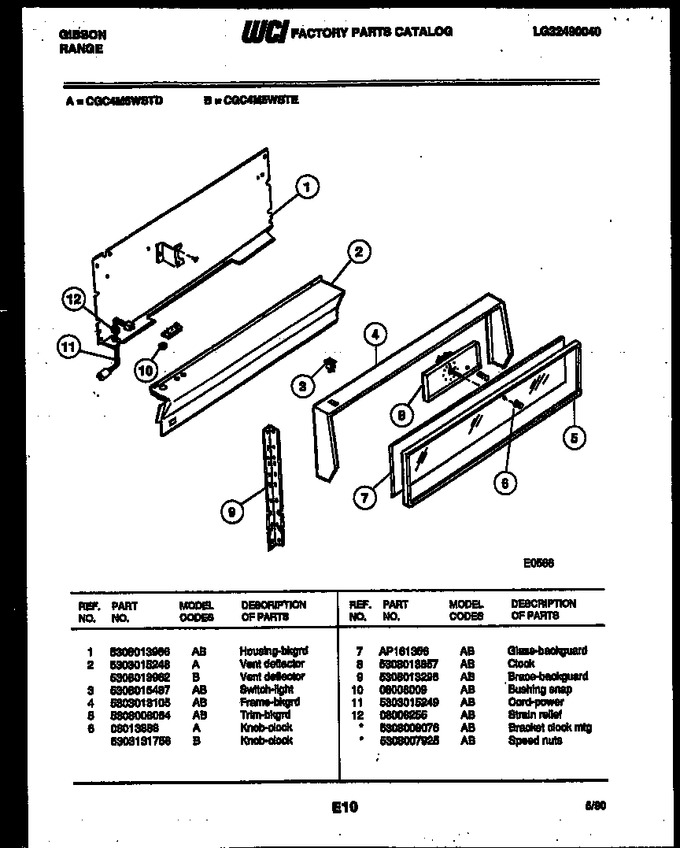

02 - Backguard
03 - Cooktop Parts
04 - Door Parts
05 - Broiler Drawer Parts
06 - Burner Parts
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308013966 | Housing-bkgrd |
|
- | |||||
| 2 | 5303015248 | Vent Deflector |
|
- | |||||
| 3 | 5308015487 | Switch - Light |
|
$ 61.43 | |||||
| 4 | 5303013105 | Frame-bkgrd |
|
- | |||||
| 5 | 5308008064 | Trim-bkgrd |
|
- | |||||
| 6 | 08013888 | Knob - Clock |
|
- | |||||
| 7 | AP161356 | Glass-backguard |
|
- | |||||
| 8 | 5308013857 | Clock |
|
- | |||||
| 9 | 5308013296 | Brace-backguard |
|
- | |||||
| 10 | 08008009 | Bushing,snap |
|
- | |||||
| 11 | 5303015249 | Cord - Power |
|
- | |||||
| 12 | 08008255 | Strain - Relief |
|
- | |||||
| *24335 | 5308008076 | Bracket-clock Mtg |
|
- | |||||
| *24335 | 5308007925 | Speed Nuts |
|
- |
