Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303017712 Insert-broiler Appelez-nous -
2 5303016973 Pan-broiler Appelez-nous -
3 3018283 Drawer Broiler Appelez-nous -
4 5303018344 Liner Broiler Door Appelez-nous -
5 3017184 Insulation Appelez-nous -
6 KGM110924 Nut (2) Appelez-nous -
7 08008084 Panel-broiler (almond) Appelez-nous -
7 08008080 Panel-broiler (white) Appelez-nous -
8 5303051041 Spacer Handle Appelez-nous -
9 5308013882 Handle-door Appelez-nous -
10 5303051043 Bolt (2) Appelez-nous -
11 5303131801 Screw Appelez-nous -
12 5303131029 Hinge-broiler Door Lh Appelez-nous -
12 3131028 Hinge-broiler Door Rh Appelez-nous -
13 5303131030 Spring-broiler Drawer Appelez-nous -
14 5303051055 Track-broiler Drawer Rh Special Order $ 56.60

15 5303051057 Roller-nylon Appelez-nous -
14A 5303051056 Track-broiler Drawer Lh Special Order $ 78.44


    View Diagram in Separate Window     Print Icon   Print Part List

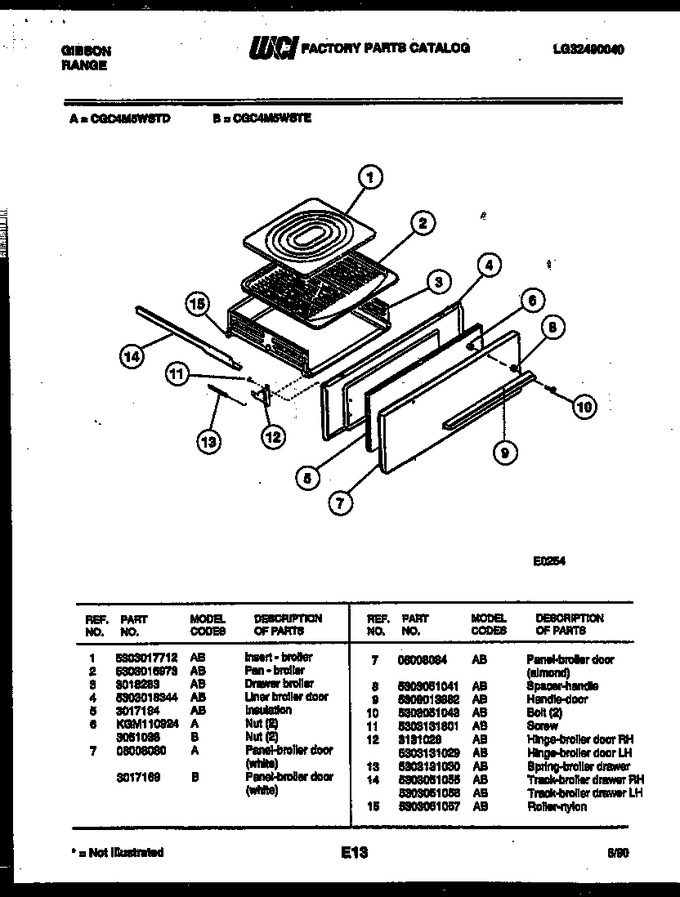

Diagram for CGC4M5WSTD
