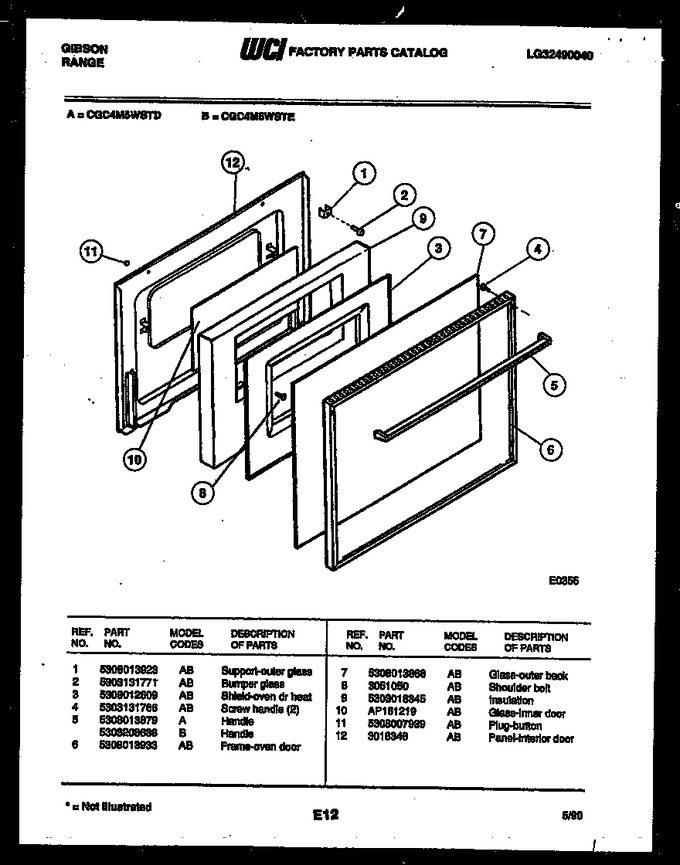

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308013923 | Support-outer Glass |
|
- | |||||
| 2 | 5303131771 | Bumper Glass |
|
- | |||||
| 3 | 5308012609 | Shield Oven Dr Heat |
|
- | |||||
| 4 | 5303131766 | Screw Handle (2) |
|
$ 10.87 | |||||
| 5 | 5308013879 | Handle |
|
- | |||||
| 6 | 5308013933 | Frame-oven Door |
|
- | |||||
| 7 | 5308013866 | Glass-outer Back |
|
- | |||||
| 8 | 3051050 | Shoulder Bolt |
|
$ 12.29 | |||||
| 9 | 5303018345 | Insulation |
|
- | |||||
| 10 | AP161219 | Glass-inner Door |
|
- | |||||
| 11 | 5308007939 | Plug-button |
|
- | |||||
| 12 | 3018346 | Panel-interior Door |
|
- |
