Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5308007974 Pressure Regulator Special Order $ 309.02

2 5308013906 Manifold-pipe Appelez-nous -
3 3131856 Slide Pipe Appelez-nous -
4 08007979 Wing Nut Appelez-nous -
5 5308013926 Thermostat Appelez-nous -
6 5303131061 Baffle-oven Burner Appelez-nous -
7 5303202752 Burner-oven Special Order $ 26.83

8 5303009495 Tube-oven Fee Appelez-nous -
9 5303131064 Nut-loxit Appelez-nous -
10 5308007985 Terminal Block Appelez-nous -
11 3131088 Cover - Oven Safety Valve Appelez-nous -
12 08008051 Bushing - Nylon Snap Appelez-nous -
13 3131069 Support - Oven Valve Appelez-nous -
14 5308009419 Valve-safety Special Order $ 232.67

15 12400035 Ignitor - Oven   (Replaces: 5308009420) In-Stock Immediately $ 60.44

16 5308008002 Cam Top Burner Appelez-nous -
17 5303131057 Valve-top Burner Appelez-nous -
18 5303131094 Switch - Micro Appelez-nous -
19 5303131096 Spring - Slide Bar Appelez-nous -
20 5303016870 Support-top Burner Appelez-nous -
21 5303015196 Ignitor-top Burner Appelez-nous -
22 5303131079 Burner,top ,rear Special Order $ 129.78

23 5303131080 Burner-top Front Special Order $ 76.13

24 5303131099 Valve-shut Off Appelez-nous -
*24349 5300009126 Clip Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

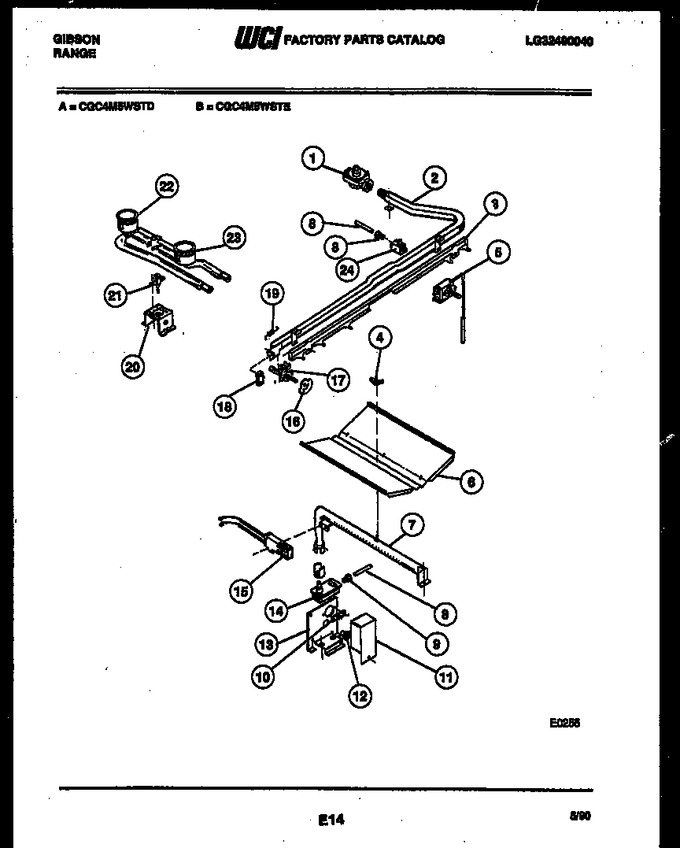

Diagram for CGC4M5WSTD
