02 - Backguard
03 - Drawer Parts
04 - Burner Parts
05 - Cooktop Parts
06 - Door Parts
07 - Body Parts
08 - Burner Box Parts
SELECT A DIAGRAM
New Model Search:

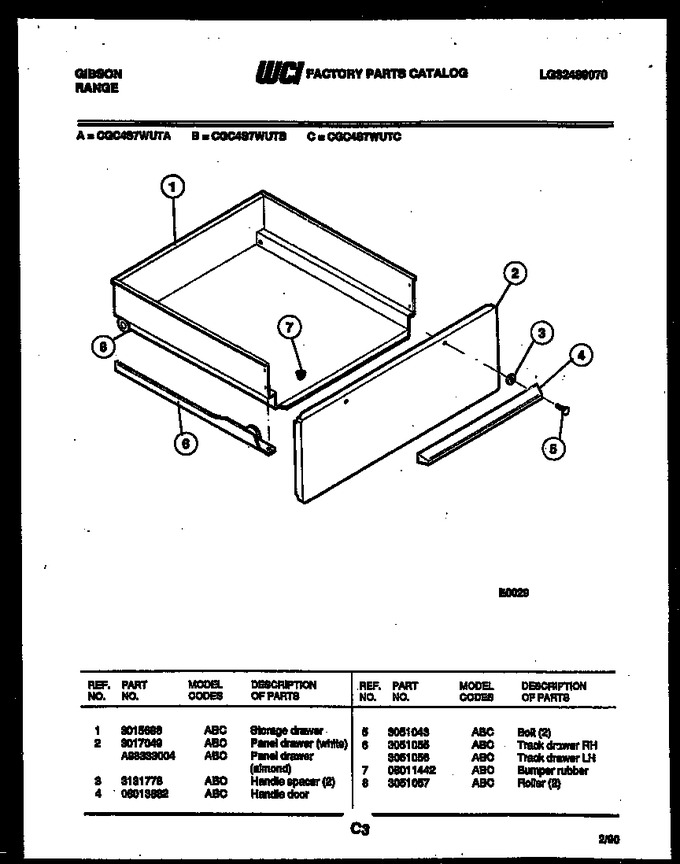

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3015688 | Storage Drawer |
|
- | |||||
| 2 | A98333004 | Panel Drawer (almond) |
|
- | |||||
| 2 | 3017049 | Panel Drawer White |
|
- | |||||
| 3 | 3131778 | Handle Spacer (2) |
|
- | |||||
| 4 | 08013882 | Handle Door |
|
- | |||||
| 5 | 3051043 | Bolt (2) |
|
- | |||||
| 6 | 3051055 | Track Drawer Rh |
|
- | |||||
| 7 | 08011442 | Bumper Rubber |
|
- | |||||
| 8 | 3051057 | Roller (2) |
|
- | |||||
| 6A | 3051056 | Track Drawer Lh |
|
- |
