SELECT A DIAGRAM

02 - Backguard


03 - Drawer Parts


04 - Burner Parts


05 - Cooktop Parts


06 - Door Parts


07 - Body Parts


08 - Burner Box Parts

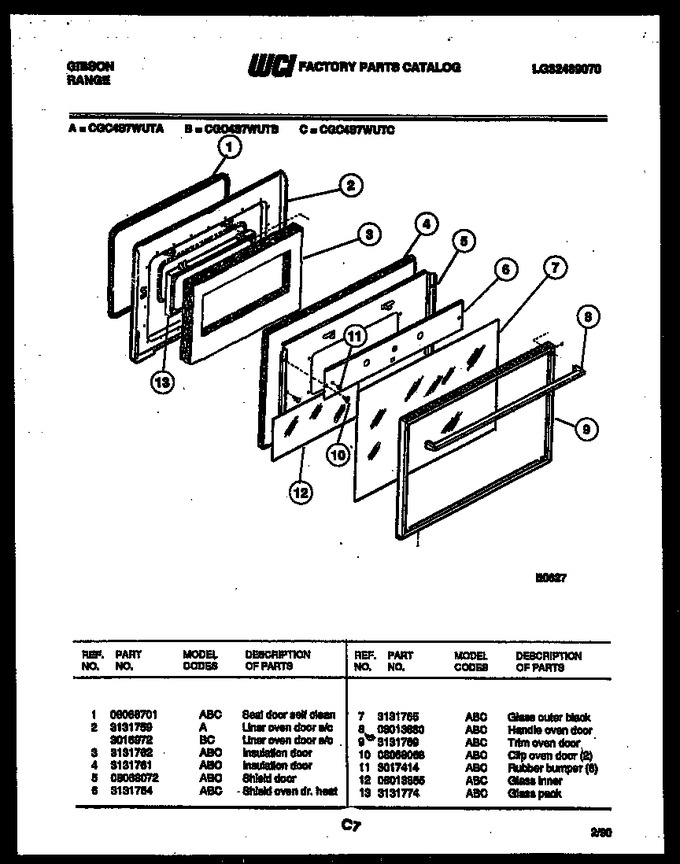

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08068071		Seal-door Self Clean		Appelez-nous	-
2	3016972		Liner Oven Door S/c		Appelez-nous	-
3	3131762		Insulation Door		Appelez-nous	-
4	3131761		Insulation Door		Appelez-nous	-
5	08068072		Shield Door		Appelez-nous	-
6	3131764		Shield Oven Dr. Heat		Appelez-nous	-
7	3131765		Glass Outer Black		Appelez-nous	-
8	08013880		Handle Oven Door		Appelez-nous	-
9	3131769		Trim Oven Door		Appelez-nous	-
10	08068068		Clip Oven Door (2)		Appelez-nous	-
11	3017414		Rubber Bumper (6)		Appelez-nous	-
12	08013865		Glass - Inner		Appelez-nous	-
13	3131774		Glass Pack		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
