02 - Backguard
03 - Drawer Parts

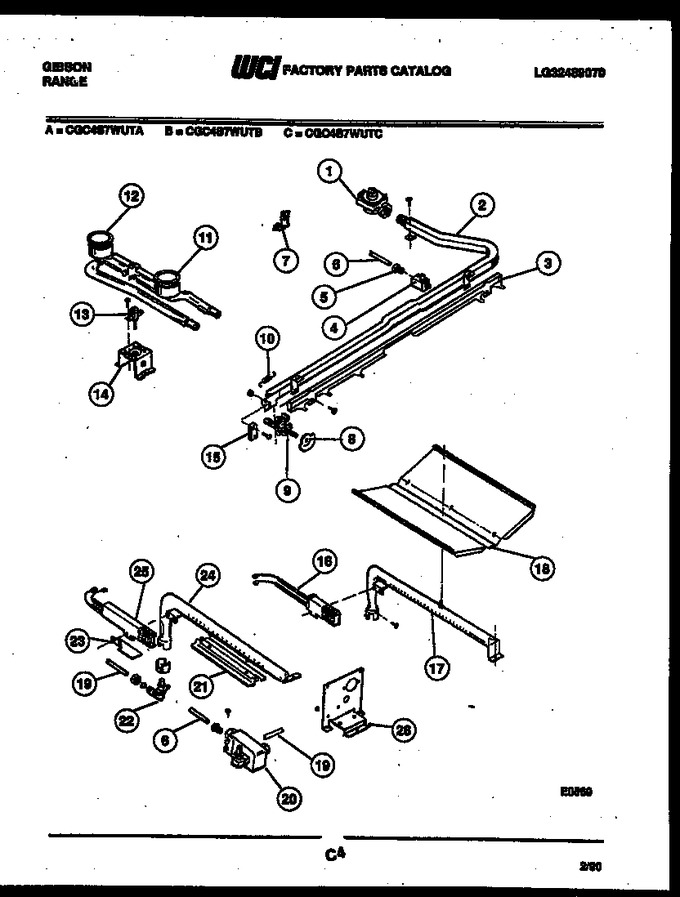

04 - Burner Parts
05 - Cooktop Parts
06 - Door Parts
07 - Body Parts
08 - Burner Box Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08007974 | Pressure Regulator |
|
- | |||||
| 2 | 8013906 | Manifold, Pipe |
|
- | |||||
| 3 | 3131856 | Bar-slide |
|
- | |||||
| 4 | 3131099 | Valve - Shut Off |
|
- | |||||
| 5 | 3131064 | Nut 3/8 Loxit |
|
- | |||||
| 6 | 8068028 | Tube Oven Feed |
|
- | |||||
| 7 | 9126 | Clip - Capillary (2) |
|
$ 24.99 | |||||
| 8 | 08008002 | Cam - Top Burner (4) |
|
- | |||||
| 9 | 3131057 | Valve Top Burners (4) |
|
- | |||||
| 10 | 3131096 | Spring - Slide Bar |
|
- | |||||
| 11 | 3131080 | Burner Front Top (2) |
|
- | |||||
| 12 | 3131079 | Burner Rear Top (2) |
|
- | |||||
| 13 | 3016869 | Igniter Top (2) |
|
- | |||||
| 14 | 3016870 | Support Top Bnr (2) |
|
- | |||||
| 15 | 8013925 | Switch Micro Frnt Mtg |
|
- | |||||
| 16 | 8009420 | Igniter Oven |
|
- | |||||
| 17 | 3131860 | Burner Oven Bake |
|
- | |||||
| 18 | 3131823 | Baffle Bake Burner |
|
- | |||||
| 19 | 3131866 | Tube Broil Feed |
|
- | |||||
| 20 | 3017415 | Valve Safety |
|
- | |||||
| 21 | 08011508 | Baffle Broiler Burner |
|
- | |||||
| 22 | 8011470 | Pin Elbow Mixer |
|
- | |||||
| 23 | 3131871 | Shield Igniter |
|
$ 7.93 | |||||
| 24 | 3131873 | Burner Broiler |
|
- | |||||
| 25 | 3016211 | Igniter Broiler |
|
- |
