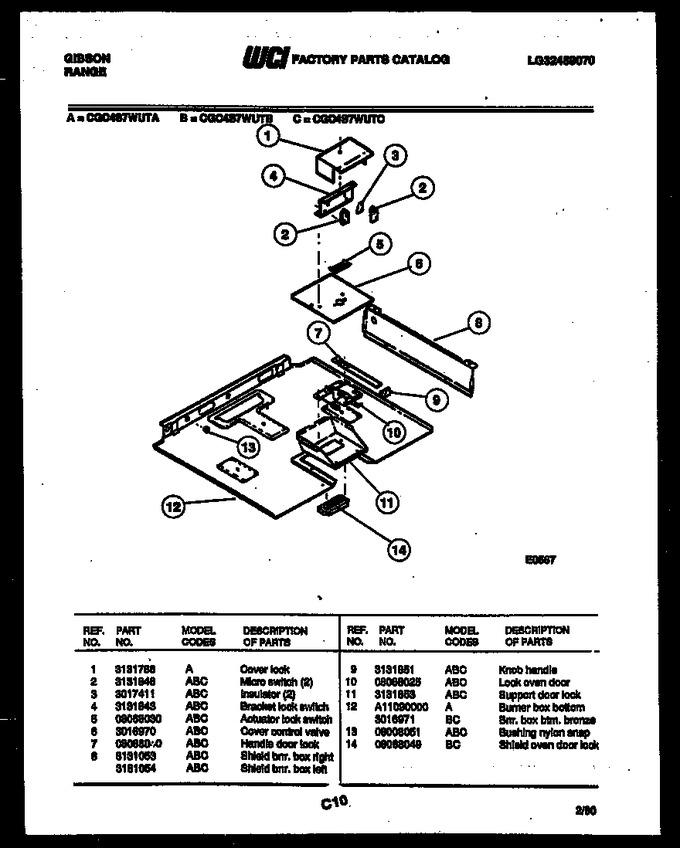

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 3131846 | Micro Switch (2) |
|
- | |||||
| 3 | 3017411 | Insulator (2) |
|
- | |||||
| 4 | 3131843 | Bracket Lock Switch |
|
- | |||||
| 5 | 08068030 | Actuator, Lock Switch |
|
- | |||||
| 6 | 3016970 | Cover-control Valve |
|
- | |||||
| 7 | 08068040 | Handle Door Lock |
|
- | |||||
| 8 | 3131053 | Shield Bnr Box Right |
|
- | |||||
| 9 | 3131851 | Knob Handle |
|
- | |||||
| 10 | 08068025 | Lock Oven Door |
|
- | |||||
| 11 | 3131853 | Support Door Lock |
|
- | |||||
| 13 | 08008051 | Bushing - Nylon Snap |
|
- | |||||
| 14 | 08068049 | Shield - Oven Door Lock |
|
- | |||||
| 12A | 3016971 | Bnr Box Btm Bronze |
|
- | |||||
| 8A | 3131054 | Shield Bnr Box Left |
|
- |
