Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 295268 Screw 6-32x3/8`` Appelez-nous -
2 299705 End Trim- Top Lamp Glass (lt. Or Rt.) Appelez-nous -
3 325049 Top Lamp Glass Appelez-nous -
4 307761 Frame-backguard Appelez-nous -
5 307717 Bottom Front-backguard Appelez-nous -
6 319361 Support-backguard (lt. Or Rt.) Appelez-nous -
7 WP112432 Screw 10-32x7/16``   (Replaces: 311484) Special Order $ 7.16


    View Diagram in Separate Window     Print Icon   Print Part List

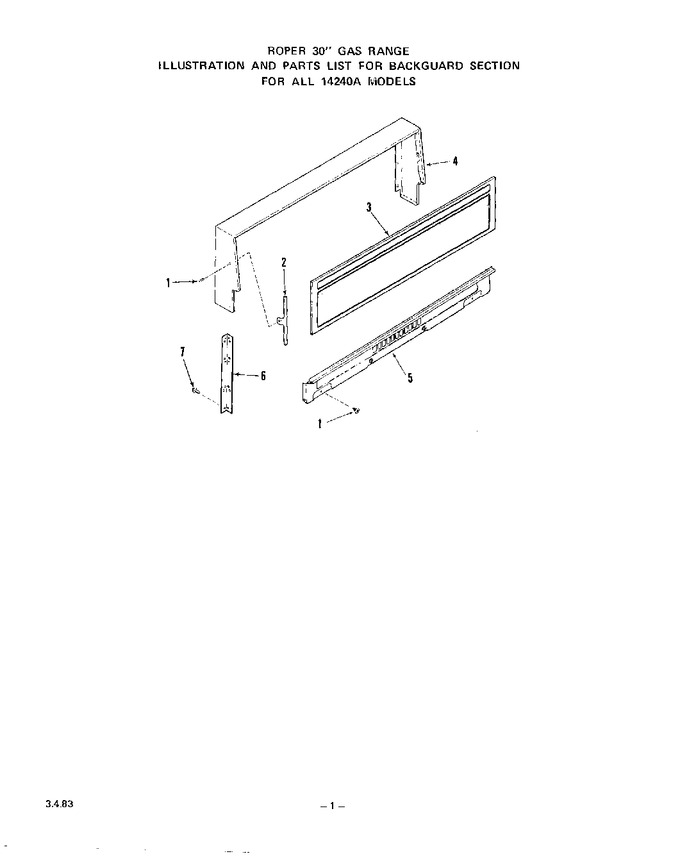

Diagram for 1424W0A
