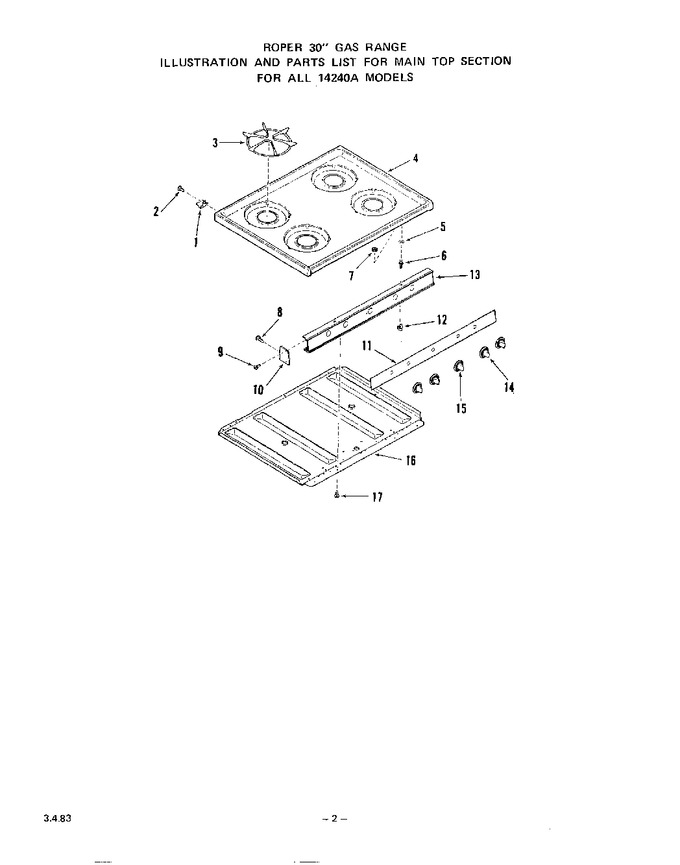

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	301672		Retainer-main Top (lt. Or Rt.)		Appelez-nous	-
2	321337		Screw 10-32x7/16``		Appelez-nous	-
3	316786		Top Grate (4 Required)		Appelez-nous	-
4	316813		Main Top (white)		Appelez-nous	-
4	316815		Main Top (golden Wheat)		Appelez-nous	-
4	316814		Main Top (almond)		Appelez-nous	-
4	316816		Main Top (avocado)		Appelez-nous	-
4	316817		Main Top (coffee)		Appelez-nous	-
5	99279		Washer		Appelez-nous	-
6	299784		Strike (rt. Or Lt.)		Appelez-nous	-
7	239764		Keps Nut		Appelez-nous	-
8	DE81-07393A		Screw 10 - 32 X 17/32``   (Replaces: 102428)				$ 174.11
9	295268		Screw 6-32x3/8``		Appelez-nous	-
10	318259		End Cap-manifold Panel (right)		Appelez-nous	-
10	318258		End Cap-manifold Panel (left)		Appelez-nous	-
11	322808		Trim-manifold Panel		Appelez-nous	-
12	24667		Catch - Main Top Strike		Appelez-nous	-
13	322807		Manifold Panel		Appelez-nous	-
14	320904		Knob-gas Valve (4 Required)		Appelez-nous	-
15	320905		Knob-oven Thermostat		Appelez-nous	-
16	308300		Burner Box Bottom		Appelez-nous	-
17	239113		Screw 10-32x3/8``		Appelez-nous	-
