SELECT A DIAGRAM

01 - Backguard


02 - Main Top


03 - Burner

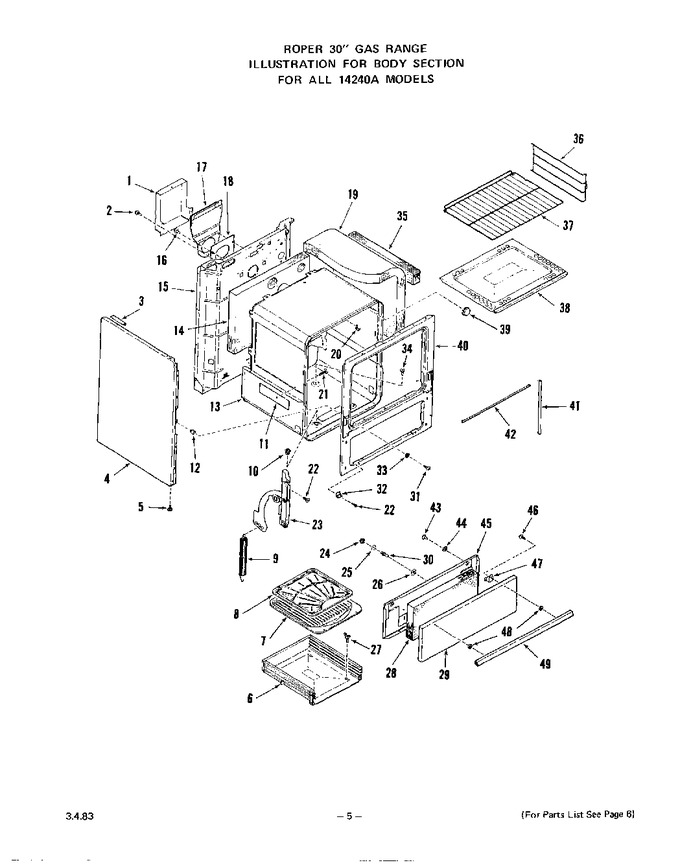

04 - Body


05 - Oven Door


07 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	296011		Shield - Flue Deflector		Appelez-nous	-
2	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
3	303513		Pad-body Side (2 Required)		Appelez-nous	-
4	323091		Body Side (golden Wheat-left)		Appelez-nous	-
4	323085		Body Side (white-left)		Appelez-nous	-
4	323087		Body Side (coffee-left)		Appelez-nous	-
4	323089		Body Side (avocado-left)		Appelez-nous	-
4	323093		Body Side (almond-left)		Appelez-nous	-
4	323084		Body Side (white-right)		Appelez-nous	-
4	323086		Body Side (coffee-right)		Appelez-nous	-
4	323088		Body Side (avocado-right)		Appelez-nous	-
4	323090		Body Side (golden Wheat-right)		Appelez-nous	-
4	323092		Body Side (almond- Right)		Appelez-nous	-
5	69065		Leg Leveler (4 Required)		Appelez-nous	-
6	305259		Broiler Drawer		Appelez-nous	-
7	290171		Broiler Pan		Appelez-nous	-
8	313071		Broiler Pan Grid		Appelez-nous	-
9	308735		Spring-oven Door (2 Required)		Appelez-nous	-
10	304980		Nut-retainer (2 Required)		Appelez-nous	-
11	314487		Retainer-insulation (rt. Or Lt.)		Appelez-nous	-
12	296006		Grommet - Screw (8 Req.)		Appelez-nous	-
13	322913		Oven Body		Appelez-nous	-
14	296140		Insulation - Oven Back		Appelez-nous	-
15	324046		Main Back		Appelez-nous	-
16	DE81-07393A		Screw 10 - 32 X 17/32``   (Replaces: 102428)				$ 174.11
17	296010		Gasket-flue Deflector		Appelez-nous	-
18	300917		Flue Deflector		Appelez-nous	-
19	296139		Insulation - Oven Top & Sides (1 Piece)		Appelez-nous	-
20	115533		Clip-thermostat Bulb (2 Required)		Appelez-nous	-
21	296097		Dart-button Head (2 Required)		Appelez-nous	-
22	112013		Screw 10-32 X 5/8``		Appelez-nous	-
23	303133		Hinge-oven Door (left)		Appelez-nous	-
23	303132		Hinge - Oven Door (right)		Appelez-nous	-
24	239764		Keps Nut		Appelez-nous	-
25	99279		Washer		Appelez-nous	-
26	306961		Catch-broiler Door Strike		Appelez-nous	-
27	278797		Thumbscrew-rt. Or Lt.		Appelez-nous	-
28	W10820036		Insulation-broiler Door (2 Req.)   (Replaces: 296141)			Immediately	$ 27.45
29	308346		Front Panel-broiler Drawer (almond)		Appelez-nous	-
29	296131		Front Panel-broiler Drawer (white)		Appelez-nous	-
29	308975		Front Panel-broiler Drawer (coffee)		Appelez-nous	-
29	308976		Front Panel-broiler Drawer (avocado)		Appelez-nous	-
29	308977		Front Panel-broiler Drawer (golden Wheat)		Appelez-nous	-
30	24668		Strike-broiler Door		Appelez-nous	-
31	WP303896		Screw 8abx1``   (Replaces: 303896)			Immediately	$ 66.12
32	285675		Hinge-broiler Door (lt. Or Rt.)				$ 180.31
33	303963		Washer		Appelez-nous	-
34	289730		Shoulder Screw 10-32x1/2``		Appelez-nous	-
35	W10820036		Insulation-burner Box Bottom Side (rt. Or Lt.)   (Replaces: 296141)			Immediately	$ 27.45
36	305409		Guide-oven Rack (rt. Or Lt.)		Appelez-nous	-
37	305408		Oven Rack (2 Required)		Appelez-nous	-
38	296069		Oven Bottom		Appelez-nous	-
39	101063		Plug Button		Appelez-nous	-
40	316994		Front Frame		Appelez-nous	-
41	314573		Side Seal-oven Door (rt. Or Lt.)		Appelez-nous	-
42	314574		Top Seal-oven Door		Appelez-nous	-
43	239113		Screw 10-32x3/8``		Appelez-nous	-
44	69603		Lockwasher		Appelez-nous	-
45	302267		Lining-broiler Door		Appelez-nous	-
46	316365		Screw 10-32x7/16``		Appelez-nous	-
47	296137		Spacer-broiler Door (2 Required)		Appelez-nous	-
48	302343		Spacer-handle		Appelez-nous	-
49	292240		Handle		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
