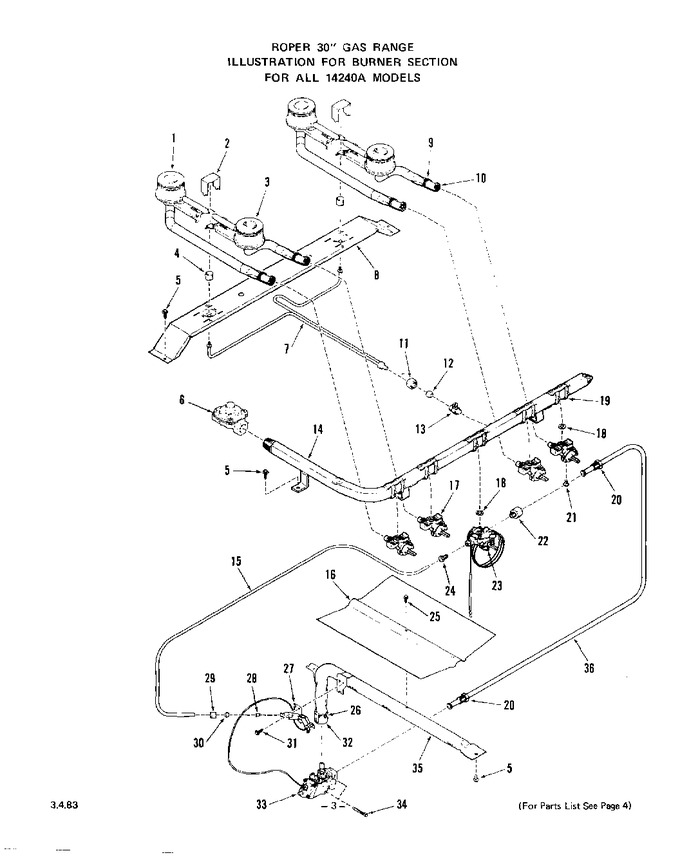

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	310197		Top Rear Burner (inc. 9 & 10)-lt. Or Rt.		Appelez-nous	-
2	296183		Shield-top Pilot (lt. Or Rt.)-lt. Or Rt.		Appelez-nous	-
3	310196		Top Front Burner (inc. 9 & 10)		Appelez-nous	-
4	308292		Cup-top Pilot (lt. Or Rt.)		Appelez-nous	-
5	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
6	324529		Pressure Regulator		Appelez-nous	-
7	325683		Pilot Tube (inc. 11 & 12)		Appelez-nous	-
8	308297		Support-top Burners		Appelez-nous	-
9	301911		Screw		Appelez-nous	-
10	301910		Air Shutter		Appelez-nous	-
11	4825		Compression Nut 1/4``		Appelez-nous	-
12	867		Compression Ball Sleeve 1/4``		Appelez-nous	-
13	290610		Filter-top Pilot		Appelez-nous	-
14	308323		Manifold Pipe		Appelez-nous	-
15	322447		Tubing 3/16`` (thermostat To Pilot)		Appelez-nous	-
16	302729		Baffle - Oven Burner		Appelez-nous	-
17	324988		Gas Valve (4 Req)		Appelez-nous	-
18	288186		Gasket (5 Req For 17 & 23)		Appelez-nous	-
19	288401		Clip (10 Req)		Appelez-nous	-
20	113384		Inverted Nut 3/8``		Appelez-nous	-
21	299137		Screw (10 Req)		Appelez-nous	-
22	303503		Fitting		Appelez-nous	-
23	302727		Thermostat		Appelez-nous	-
24	79673		Loxit Nut 3/16``		Appelez-nous	-
25	316365		Screw 10-32x7/16``		Appelez-nous	-
26	239268		Screw		Appelez-nous	-
27	294528		Pilot Only (inc. 28)		Appelez-nous	-
28	DD01-01019A		Orifice Cup   (Replaces: 113117)				$ 7.73
29	65712		Compression Nut 3/16``		Appelez-nous	-
30	65711		Compression Ball Sleeve 3/16``				$ 6.30
31	288248		Screw 10-24x1/4``		Appelez-nous	-
32	239267		Air Shutter		Appelez-nous	-
33	294529		Control Valve (inc. 27 & 28)		Appelez-nous	-
34	112365		Screw 10-32x2``		Appelez-nous	-
35	303398		Burner-oven (inc`s. 16, 26 & 32)		Appelez-nous	-
36	315807		Tubing 3/8`` (thmst. To Cont. Valve)		Appelez-nous	-
