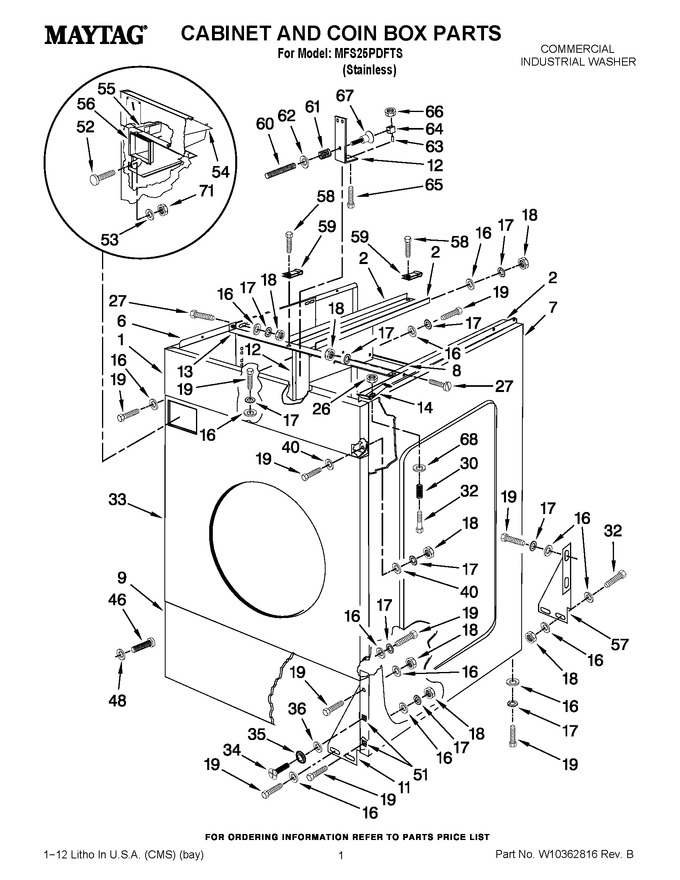

01 - Cabinet And Coin Box Parts


02 - Door Parts


03 - Door Lock Parts


04 - Control Panel Parts


05 - Box Of Electrical Components


06 - Soap Hopper And Top Cover Parts


07 - Tub And Drum Parts


08 - Drain System Parts


09 - Rear Panel Parts


10 - Drive Parts


11 - Frame And Tub Support Parts


12 - Trunnion Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	23004302		Control Panel Coin		Appelez-nous	-
2	23004469		Front To Back Reinforcement		Appelez-nous	-
6	23004470		Left Side Panel		Appelez-nous	-
7	23004471		Right Side Panel		Appelez-nous	-
8	23004472		Rear Panel		Appelez-nous	-
9	23004473		Service Panel		Appelez-nous	-
11	23004474		Front Cabinet Stiffner		Appelez-nous	-
12	23004475		Out Of Balance Plate		Appelez-nous	-
13	23004476		Top Cabinet Stiffner		Appelez-nous	-
14	23001442		Top Clip		Appelez-nous	-
16	23001309		Washer M6.4x17x3		Appelez-nous	-
17	23002756		Lock Washer M6		Appelez-nous	-
18	23001312		Nut M6		Appelez-nous	-
19	23004114		Bolt M6x16   (Replaces: 23002461)		Appelez-nous	-
26	23001310		Nut M6		Appelez-nous	-
27	23003301		Bolt (m6x16)		Appelez-nous	-
30	23001445		Top Clip Spring		Appelez-nous	-
32	23002463		Bolt M6x30		Appelez-nous	-
33	W10357112		Front Panel Coin		Appelez-nous	-
34	23003478		Bolt M6x50				$ 5.27
35	23002457		Washer M6		Appelez-nous	-
36	23002458		Washer M15x7x2		Appelez-nous	-
40	23002756		Washer M6		Appelez-nous	-
46	23004095		Bolt M4x16		Appelez-nous	-
48	23002438		Washer M4.3		Appelez-nous	-
51	23002455		Nut M6		Appelez-nous	-
52	23004095		Bolt M4x16		Appelez-nous	-
53	23002504		Washer M4		Appelez-nous	-
54	23003776		Coinbox Support		Appelez-nous	-
55	23003974		Vault Assembly		Appelez-nous	-
56	23003775		Vault Front Bezel		Appelez-nous	-
57	23004478		Back Left Cabinet Stiffner		Appelez-nous	-
57	23004479		Back Right Cabinet Stiffner		Appelez-nous	-
58	23004480		Screw St4, 8x13		Appelez-nous	-
59	23004481		Harness Clip		Appelez-nous	-
60	23003901		Large Balance Switch Spring		Appelez-nous	-
61	23003900		Small Balance Switch Spring		Appelez-nous	-
62	23002504		Washer M4		Appelez-nous	-
63	23003902		Spacer M7x10		Appelez-nous	-
64	23003899		Out Of Balance Switch		Appelez-nous	-
65	23002906		Bolt M3x25		Appelez-nous	-
66	23002958		Nut M3		Appelez-nous	-
67	23003904		Balance Switch Spring Holder		Appelez-nous	-
68	23001027		Washer M6		Appelez-nous	-
71	23001014		Nut M4		Appelez-nous	-
