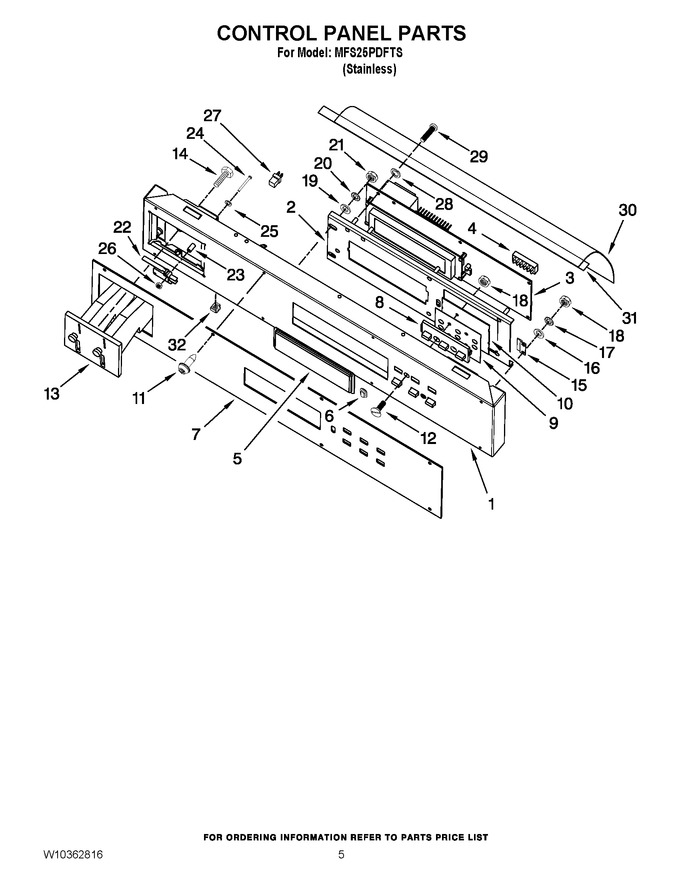

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 23004302 | Control Panel |
|
- | |||||
| 2 | 23004117 | Control Board Bracket |
|
- | |||||
| 3 | W10343020 | Mc5 Control Board Starting With Series 22 |
|
- | |||||
| 3 | 23004118 | Mc4 Control Board |
|
- | |||||
| 4 | W10165003 | Mc4 Coin Program, Chip |
|
- | |||||
| 4 | W10387042 | Mc5 Coin Program Chip Starting With Series 22 |
|
- | |||||
| 5 | 23004119 | Display Lens |
|
- | |||||
| 6 | 23004120 | Infrared Lens |
|
- | |||||
| 7 | W10357117 | Facia Panel |
|
- | |||||
| 8 | 23003646 | 3 Button Assembly |
|
- | |||||
| 9 | 23004122 | Membrane Switch |
|
- | |||||
| 10 | 23004123 | Membrane Switch Plate |
|
- | |||||
| 11 | WPW10131119 | Screw M4x13 (Replaces: 23003810) |
|
$ 6.26 | |||||
| 12 | 23003793 | Screw M4x12 |
|
- | |||||
| 13 | 23004167 | Optic Switch |
|
- | |||||
| 13 | 23004075 | Dual Coin Drop Canada |
|
- | |||||
| 13 | 23004124 | Coin Drop (.25 Cent) |
|
- | |||||
| 14 | 23003797 | Retaining Bolt |
|
- | |||||
| 15 | 23004125 | Z Clip |
|
- | |||||
| 16 | 23002438 | Washer M4.3 |
|
- | |||||
| 17 | 23002865 | Lock Washer M4 |
|
- | |||||
| 18 | 23001014 | Nut M4 |
|
- | |||||
| 19 | 23002756 | Washer M6.4 |
|
- | |||||
| 20 | 23002756 | Lock Washer M6 |
|
- | |||||
| 21 | 23001312 | Nut M6 |
|
- | |||||
| 22 | 23001145 | Service Switch |
|
- | |||||
| 23 | 23003653 | Spacer |
|
- | |||||
| 24 | 23003652 | Bolt M3x30 |
|
- | |||||
| 25 | 23003654 | Washer M3.2 |
|
- | |||||
| 26 | 23002958 | Nut M3 |
|
- | |||||
| 27 | W10357118 | Emergency Stop Connector |
|
- | |||||
| 28 | 23002865 | Lock Washer M3 |
|
- | |||||
| 29 | 23002869 | Bolt M3x6 |
|
- | |||||
| 30 | 23002877 | Rain Shield |
|
- | |||||
| 31 | 23004126 | Double Sided Tape |
|
- | |||||
| 32 | 23002455 | Cage Nut M6 |
|
- | |||||
| NI | W10357119 | Coin To Opl Conversion Kit |
|
- |
