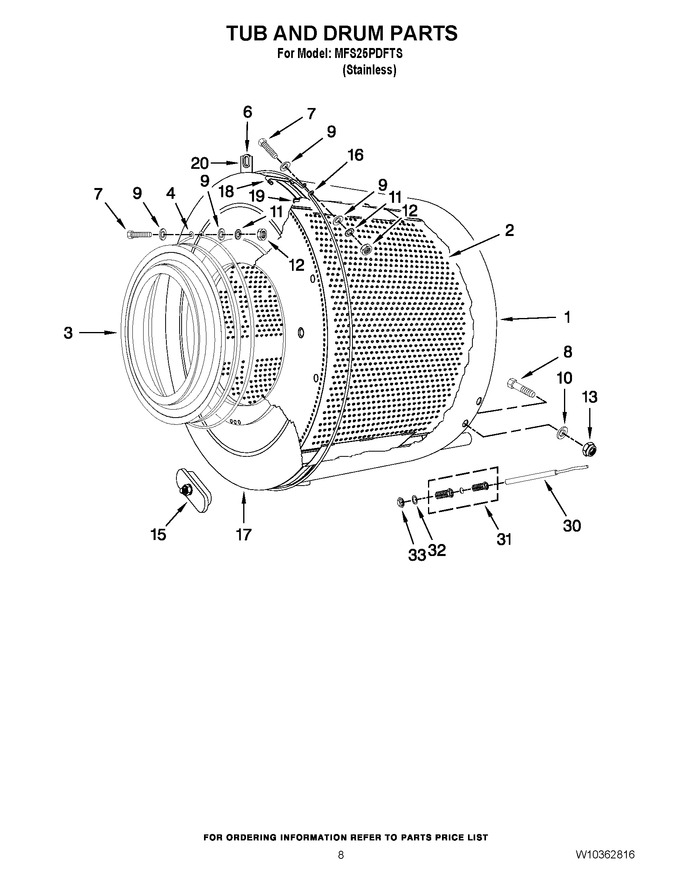

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	23004500		Tub Complete		Appelez-nous	-
2	23004501		Drum		Appelez-nous	-
3	23003536		Bellow		Appelez-nous	-
4	23003537		Bellow To Tub Clamp		Appelez-nous	-
4	W10357140		Assembly Ring Plate		Appelez-nous	-
6	23003539		Balance Switch Grommet		Appelez-nous	-
7	23004000		Bolt M6 X 60		Appelez-nous	-
8	23003079		Bolt M12x40		Appelez-nous	-
9	23001309		Washer M6.4x17x3		Appelez-nous	-
10	23004146		Washer		Appelez-nous	-
11	23002756		Lock Washer M6		Appelez-nous	-
12	23001312		Nut M6		Appelez-nous	-
13	W10357141		Nut M6		Appelez-nous	-
15	23001594		Heating Element Hole Plug		Appelez-nous	-
16	23004502		Clamp Retaining Ring		Appelez-nous	-
17	23004503		Tub Front Panel		Appelez-nous	-
18	23004141		Tub-front Clamp		Appelez-nous	-
19	23004148		Funnel		Appelez-nous	-
20	23003911		Balance Switch Grommet Support		Appelez-nous	-
30	23003831		Temperature Sensor		Appelez-nous	-
31	W10382922		Temperature, Sensor Holder		Appelez-nous	-
32	23002179		O Ring		Appelez-nous	-
33	23002936		Temperature, Sensor Holder, Nut M14		Appelez-nous	-
NI	W10382923		O Ring		Appelez-nous	-
