Diagram # Part Number Description Series Availability Ships Price Add to Cart
3 23003544 Door Glass Appelez-nous -
4 23001365 Door Glass Gasket Appelez-nous -
5 23003545 Hinge Block Appelez-nous -
6 23001368 Hinge Block Shim Appelez-nous -
9 23001168 Door Handle Pivot Pin Appelez-nous -
10 23001169 Door Handle Spring Appelez-nous -
11 23002499 Spring Speed Clip Appelez-nous -
14 23002424 Washer M6 Appelez-nous -
15 23001158 Lock Washer M6 Appelez-nous -
16 23002462 Bolt M6x20 Special Order $ 5.14

17 23001173 Door Handle, Guide Appelez-nous -
19 23002280 Nut M6 Appelez-nous -
20 23001175 Bolt M6x20 (handle Side) Appelez-nous -
21 23004113 Bolt M4x12 Appelez-nous -
23 23003860 Door Handle Cover Appelez-nous -
24 W10357125 Door Frame Appelez-nous -
26 W10357126 Door Hinge Appelez-nous -
27 23001370 Door Handle Block W/pin Appelez-nous -
28 23003858 Door Latch Appelez-nous -
29 23004489 Door Shim Appelez-nous -
30 W10382919 Carriage Bolt, M6x25 (hinge Side) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

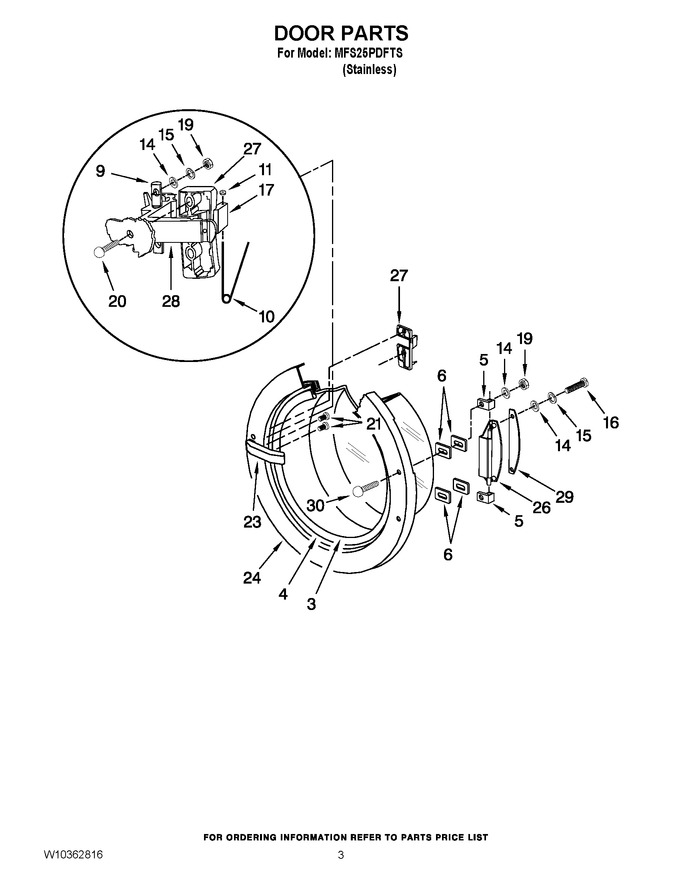

Diagram for MFS25PDFTS
