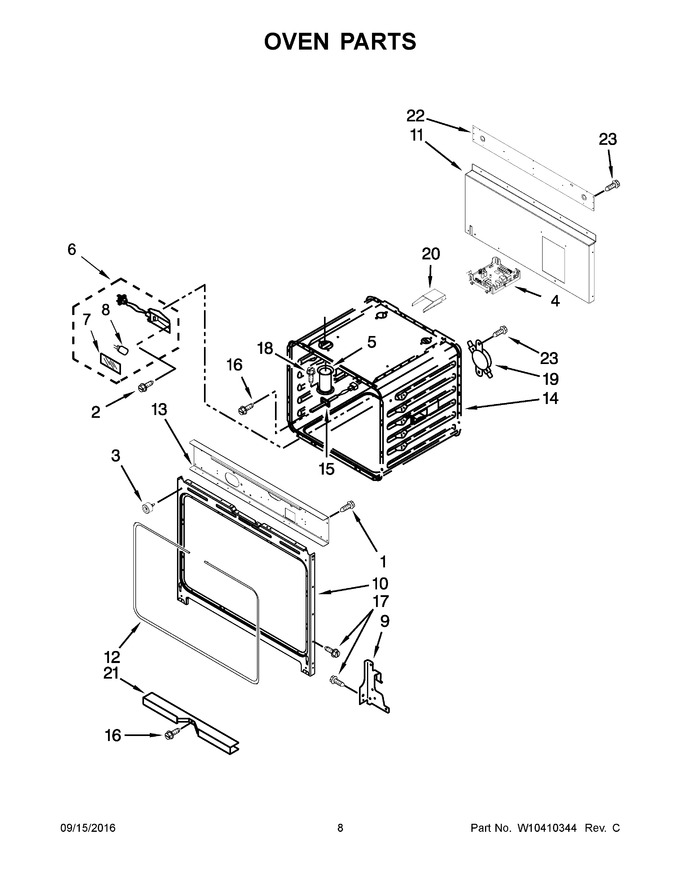

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10292297 | Screw (Replaces: W10292297) |
|
Immediately | $ 6.47 | ||||
| 2 | 4449748 | Screw |
|
$ 12.20 | |||||
| 3 | W10105790 | Bumper & Screw |
|
$ 6.35 | |||||
| 4 | W10876298 | Manager, Appliance (goc) (Replaces: W10859105) |
|
Immediately | $ 432.95 | ||||
| 4 | W10876298 | Control (Replaces: W10146048) |
|
Immediately | $ 432.95 | ||||
| 5 | W10288061 | Tube, Vent |
|
$ 99.38 | |||||
| 6 | WPW10307114 | Assembly, Oven Light (Replaces: W10307114) |
|
Immediately | $ 99.44 | ||||
| 6 | W10169756 | Lens, Light |
|
$ 36.16 | |||||
| 7 | WPW10307114 | Assembly, Oven Light (Replaces: W10307114) |
|
Immediately | $ 99.44 | ||||
| 7 | W10169756 | Lens, Light |
|
$ 36.16 | |||||
| 8 | WPW10169757 | Bulb, Light (Replaces: W10169757) |
|
Immediately | $ 42.64 | ||||
| 9 | WP4455605 | Receiver, Hinge (left) (Replaces: 4455605) |
|
Immediately | $ 103.82 | ||||
| 10 | WPW10115831 | Frame, Front (Replaces: W10115831) |
|
$ 301.62 | |||||
| 11 | W10145392 | Panel, Back Bottom |
|
- | |||||
| 12 | W11675844 | Gasket, Oven (30") (Replaces: W10160890) |
|
Immediately | $ 62.78 | ||||
| 12 | W11675844 | Gasket, Oven (30") (Replaces: W10850858) |
|
Immediately | $ 62.78 | ||||
| 13 | W10145377 | Support, Channel |
|
- | |||||
| 14 | N/P | Liner, Oven (not Serviced) |
|
- | |||||
| 15 | WPW10131825 | Sensor (Replaces: W10131825) |
|
Immediately | $ 86.25 | ||||
| 16 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 | |||||
| 17 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 18 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 12.62 | ||||
| 19 | WP4449751 | Thermostat (tod) (Replaces: 4449751) |
|
Immediately | $ 100.66 | ||||
| 20 | W10235557 | Assembly, Drawer |
|
- | |||||
| 21 | W11368870 | Retainer, Gasket (30") (Replaces: W10157511) |
|
$ 21.35 | |||||
| 22 | W10269207 | Panel, Back Top |
|
- | |||||
| 23 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 9A | WP4455606 | Receiver, Hinge (right) (Replaces: 4455606) |
|
Immediately | $ 107.47 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11661177 | Insulation, Wrap, 30 (Replaces: W10282810) |
|
$ 139.28 | |||||
| NI | W11688396 | Insulation, Back, 30 (Replaces: W10282816) |
|
- |
