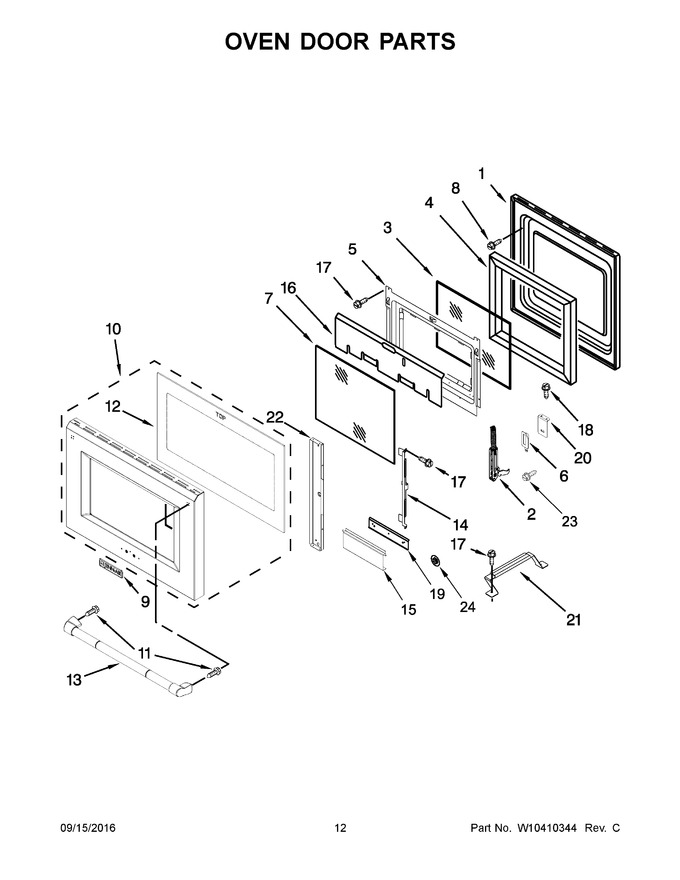

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP9759413 | Liner, Door (Replaces: 9759413) |
|
$ 317.54 | |||||
| 2 | W10782125 | Hinge, Door (left) (Replaces: W10774095) |
|
$ 55.08 | |||||
| 3 | WP4449259 | Glass, Inner (single Coated) (Replaces: 4449259) |
|
$ 182.86 | |||||
| 4 | WP4451722 | Insulation, Door (Replaces: 4451722) |
|
$ 162.66 | |||||
| 5 | WP4457132 | Retainer, Glass (Replaces: 4457132) |
|
$ 275.13 | |||||
| 6 | W10115876 | Cover, Hinge (left) |
|
- | |||||
| 7 | WP9759225 | Glass, Inner (double Coated) (Replaces: 9759225) |
|
Immediately | $ 174.78 | ||||
| 8 | WPW10292297 | Screw (Replaces: W10292297) |
|
Immediately | $ 6.47 | ||||
| 9 | WPW10159578 | Badge (stainless) (Replaces: W10159578) |
|
Immediately | $ 75.89 | ||||
| 10 | W10145759 | Panel, Exterior |
|
- | |||||
| 11 | WPW10276043 | Screw (Replaces: W10276043) |
|
$ 6.26 | |||||
| 12 | W11124797 | Glass, Outer Door (Replaces: W10145850) |
|
- | |||||
| 13 | WP7701P475-60 | Handle, Door (Replaces: 7701P475-60) |
|
$ 251.94 | |||||
| 14 | WP9759229 | Bracket, Side (Replaces: 9759229) |
|
$ 160.71 | |||||
| 15 | W10145763 | Bracket, Center Outer Glass |
|
- | |||||
| 16 | 4457104 | Shield, Heat Top |
|
$ 33.62 | |||||
| 17 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 18 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 19 | 4457114 | Shield, Heat Bottom |
|
$ 186.68 | |||||
| 20 | W10115715 | Bracket, Door Top |
|
- | |||||
| 21 | 9759230 | Bracket, Central |
|
$ 36.30 | |||||
| 22 | W10145761 | Bracket, Outer Glass Side |
|
- | |||||
| 23 | WP4449743 | Screw (Replaces: 4449743) |
|
$ 6.47 | |||||
| 24 | WP3400968 | Nut (Replaces: 3400968) |
|
Immediately | $ 7.01 | ||||
| 2A | W10782124 | Hinge, Door (right) (Replaces: W10774094) |
|
$ 55.08 | |||||
| 6A | W10115877 | Cover, Hinge (right) |
|
- |
