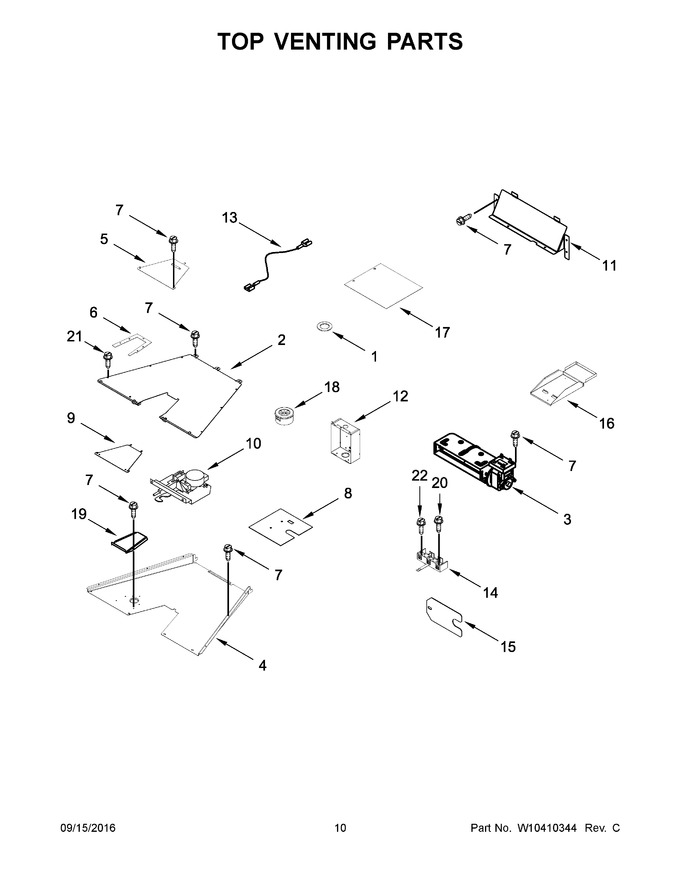

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10270396		Seal, Chimney		Appelez-nous	-
2	W10160896		Vent, Cooling Top (30")		Appelez-nous	-
3	WPW10245511		Blower 60mm   (Replaces: W10245511)			Immediately	$ 275.42
4	W10246078		Vent, Cooling Bottom (30")		Appelez-nous	-
5	W10160875		Plate, Cooling Latch		Appelez-nous	-
6	W10270397		Seal, Vent Slope (30")		Appelez-nous	-
7	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
8	9759721		Insulator, Terminal Box		Appelez-nous	-
9	W10160858		Cover, Latch				$ 65.95
10	W11029221		Latch, Motorized   (Replaces: W10195935)			Immediately	$ 280.85
10	W11029221		Latch, Motorized   (Replaces: W10830016)			Immediately	$ 280.85
11	W10160844		Bracket, Blower (18")		Appelez-nous	-
12	W10467022		Box, Terminal		Appelez-nous	-
13	W10854967		Electrode, Burner   (Replaces: 8286725)			Immediately	$ 41.37
14	WP9761958		Block, Terminal   (Replaces: 9761958)			Immediately	$ 39.72
15	W10145382		Cover, Channel		Appelez-nous	-
16	W10249337		Support, Control		Appelez-nous	-
16	W10853036		Support, Control		Appelez-nous	-
17	W10239444		Seal, Control		Appelez-nous	-
18	9757778		Bushing, Snap Split				$ 83.68
19	W10246075		Slope, Exhaust Vent (30")		Appelez-nous	-
19	W10818234		Slope, Exhaust Vent (30")		Appelez-nous	-
20	WP112432		Nut, Hex   (Replaces: 112432)				$ 7.16
21	WP3196163		Screw   (Replaces: 3196163)				$ 6.26
22	WP3400015		Screw, Grounding   (Replaces: 3400015)				$ 6.47
