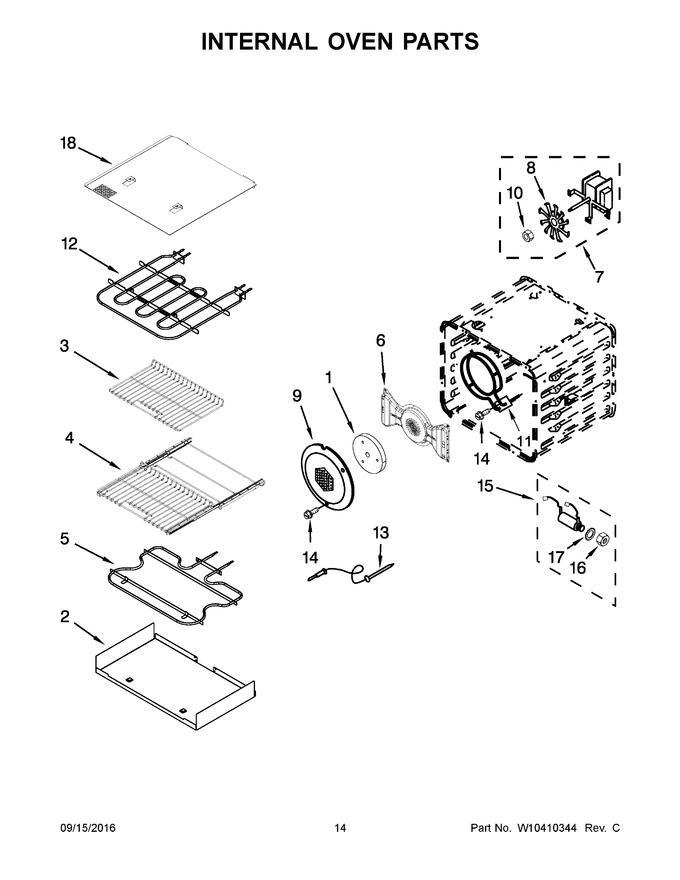

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11688507 | Insulation, Convection Cover (Replaces: W10282821) |
|
Immediately | $ 23.23 | ||||
| 2 | W10160845 | Tray, Hidden Bake |
|
- | |||||
| 3 | W11550107 | Rack, Oven (Replaces: W10570887) |
|
$ 105.40 | |||||
| 4 | W11186364 | Rack, Oven (sliding) (Replaces: W10570865) |
|
$ 248.35 | |||||
| 5 | W11783663 | Element, Hidden Bake (Replaces: W10115995) |
|
Immediately | $ 130.64 | ||||
| 6 | W10246060 | Baffle, Convection |
|
$ 154.65 | |||||
| 7 | W10860984 | Fan, Convection (Replaces: W10722667) |
|
Immediately | $ 158.77 | ||||
| 8 | W10819914 | Blade, Fan (Replaces: W10631503) |
|
$ 76.01 | |||||
| 9 | W10261523 | Plate, Fan |
|
$ 66.73 | |||||
| 10 | W10794042 | Nut, Acorn (lh) (Replaces: W10631504) |
|
$ 11.26 | |||||
| 11 | W10116434 | Element, Convection |
|
$ 293.64 | |||||
| 12 | W10115994 | Element, Broil |
|
$ 256.91 | |||||
| 13 | WP9755542 | Probe, Temperature (Replaces: 9755542) |
|
Immediately | $ 82.91 | ||||
| 14 | WP74003976 | Screw (Replaces: 7101P500-60) |
|
$ 6.47 | |||||
| 15 | 8186589 | Jack, Meat Probe (Replaces: 9755543) |
|
Immediately | $ 97.22 | ||||
| 16 | WP9755546 | Nut, Hidden (Replaces: 9755546) |
|
$ 6.26 | |||||
| 17 | WP9755547 | Washer, Lock (Replaces: 9755547) |
|
$ 5.49 | |||||
| 18 | W10160856 | Shield, Element Broil |
|
- |
