01 - Cover

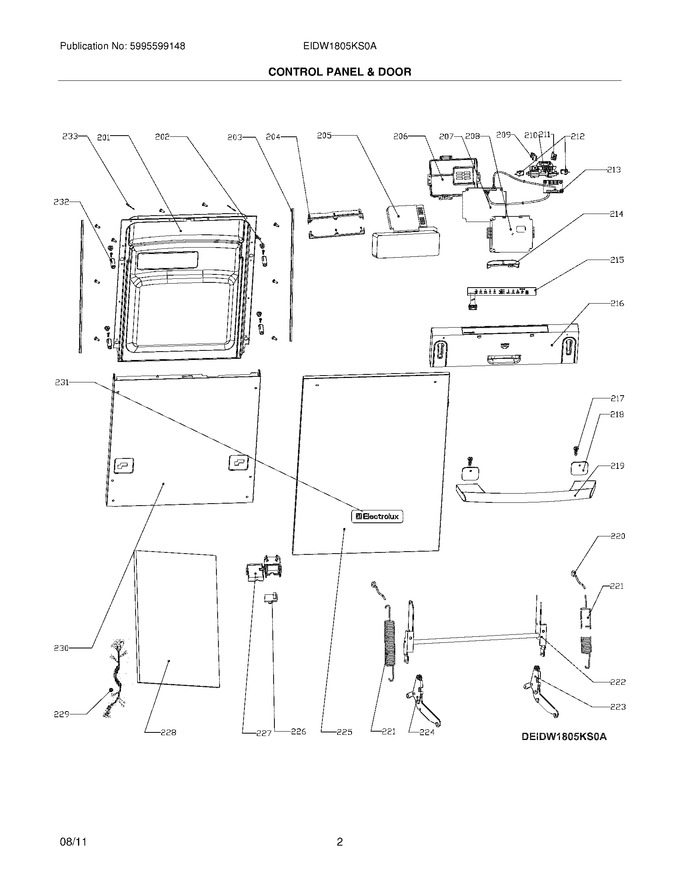

03 - Control Panel & Door
05 - Tub & Frame
07 - Motor & Pump
09 - Racks
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 201 | 5304483637 | Liner Assembly,door ,inner |
|
$ 176.27 | |||||
| 202 | 5304483638 | Cap,screw Cover ,(4) |
|
- | |||||
| 203 | 5304482448 | Guard,door ,black ,side ,(2) |
|
$ 10.97 | |||||
| 204 | 5304482449 | Bracket,dispenser Mtg. ,(2) |
|
- | |||||
| 206 | 5304483458 | Cover,control Board |
|
$ 55.76 | |||||
| 208 | 5304483466 | Box,main Board |
|
$ 28.25 | |||||
| 209 | 5304483464 | Barrier,switch ,lh |
|
$ 8.87 | |||||
| 210 | 5304535183 | Latch,door (Replaces: 5304482428) |
|
Immediately | $ 16.22 | ||||
| 211 | 5304483465 | Barrier,switch ,rh |
|
$ 9.61 | |||||
| 214 | 5304483641 | Cover,console |
|
- | |||||
| 216 | 5304483643 | Console Assembly |
|
$ 116.45 | |||||
| 217 | 5304483644 | Screw,handle Mtg. ,m5 X 20 ,(2) |
|
$ 4.94 | |||||
| 218 | 5304513820 | Plate,handle Support ,(2) (Replaces: 5304483645) |
|
$ 18.43 | |||||
| 219 | 5304483646 | Handle Assembly,door |
|
$ 239.66 | |||||
| 220 | 5304482486 | Bolt,door Spring ,(2) |
|
$ 17.64 | |||||
| 221 | 5304483475 | Spring,door Hinge ,(2) |
|
$ 19.60 | |||||
| 222 | 5304483476 | Hinge Assembly,door |
|
$ 60.69 | |||||
| 223 | 5304482484 | Hinge,door ,rh |
|
$ 73.92 | |||||
| 224 | 5304482483 | Hinge,door ,lh |
|
$ 70.56 | |||||
| 225 | 5304483647 | Door Assembly,outer |
|
$ 392.28 | |||||
| 227 | 5304483649 | Cover,led Indicator |
|
- | |||||
| 228 | 5304483650 | Insulation,door ,foam |
|
- | |||||
| 230 | 5304483652 | Frame,door ,inner |
|
$ 98.81 | |||||
| 231 | 241873301 | Nameplate,electrolux (Replaces: 5304483653) |
|
$ 11.15 | |||||
| 232 | 5304483654 | Cover,screw ,(4) |
|
$ 10.61 | |||||
| 233 | 5304483655 | Screw,3.5 X 45 ,(2) |
|
- | |||||
| F205 | 5304509278 | Dispenser Assembly,detergent (Replaces: 5304483639) |
|
$ 231.58 | |||||
| F207 | 5304483640 | Board Assembly,control ,main |
|
$ 349.88 | |||||
| F212 | 5304483463 | Switch,micro ,(2) ,latch Assembly |
|
Immediately | $ 59.28 | ||||
| F213 | 5304483461 | Control Board,small |
|
- | |||||
| F215 | 5304483642 | Membrane,touch Control ,assembly |
|
$ 295.73 | |||||
| F226 | 5304483648 | Indicator,led |
|
$ 32.45 | |||||
| F229 | 5304483651 | Harness,wiring ,main |
|
- | |||||
| NI | 5304484924 | Energy Guide Label |
|
- |
