New Model Search:

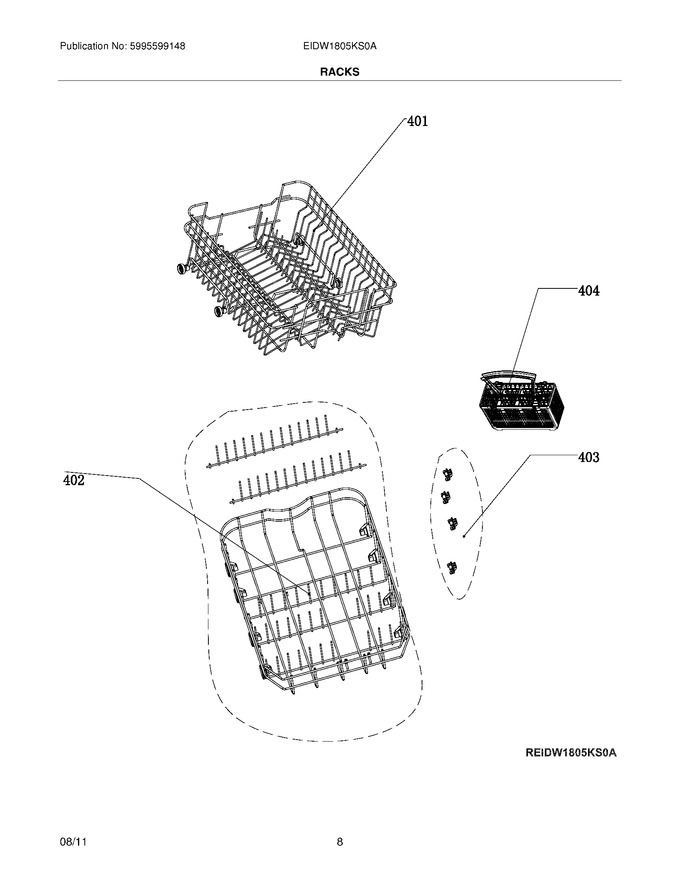

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 401 | 5304483664 | Rack Assembly,upper |
|
$ 218.35 | |||||
| 402 | 5304525233 | Rack Assembly,lower (Replaces: 5304483665) |
|
$ 158.81 | |||||
| 403 | 5304483666 | Bracket,fence ,fold Down ,(4) |
|
- | |||||
| 404 | 5304513826 | Basket Assembly,silverware (Replaces: 5304483667) |
|
$ 103.30 |
