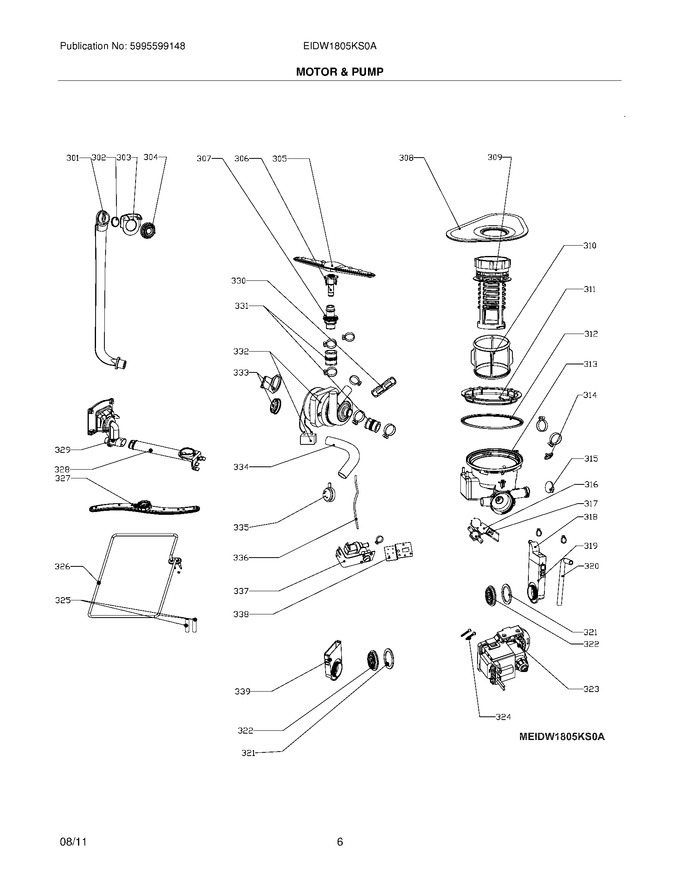

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 301 | 5304483437 | Delivery Hose,assembly |
|
$ 34.60 | |||||
| 302 | 5304482363 | O Ring,delivery Tube ,(2) |
|
$ 7.80 | |||||
| 303 | 5304483656 | Casing,guide ,delivery Tube |
|
$ 13.28 | |||||
| 304 | 5304483657 | Nut,pipe ,delivery Tube |
|
$ 15.08 | |||||
| 306 | 5304483451 | Axis Assembly,spray Arm ,lower |
|
$ 18.38 | |||||
| 307 | 5304483452 | Connector Assembly,spray Arm ,lower |
|
$ 33.86 | |||||
| 308 | 5304482464 | Filter Assembly,screen ,stainless |
|
$ 103.01 | |||||
| 309 | 5304483438 | Filter Assembly |
|
$ 25.94 | |||||
| 310 | 5304483439 | Filter Assembly,micro |
|
$ 51.46 | |||||
| 311 | 5304483440 | Nut,sump Mtg. |
|
$ 19.14 | |||||
| 312 | 5304482467 | Gasket,sump |
|
$ 17.91 | |||||
| 315 | 5304482469 | Flapper,check Valve |
|
$ 10.63 | |||||
| 316 | 5304482470 | Bracket,thermostat |
|
$ 19.74 | |||||
| 318 | 5304482391 | Cover,water Tunnel |
|
$ 18.43 | |||||
| 319 | 5304482392 | Tunnel,water |
|
$ 27.45 | |||||
| 320 | 5304483658 | Hose,inlet ,tunnel |
|
- | |||||
| 321 | 5304482394 | Gasket,ring Nut |
|
Immediately | $ 13.74 | ||||
| 322 | 5304483443 | Ring Nut |
|
$ 12.55 | |||||
| 324 | 5304482501 | Screw,rec ,st4 X 15.5 ,(2) |
|
$ 8.45 | |||||
| 325 | 5304482462 | Casing,haeting Element ,(2) |
|
- | |||||
| 328 | 5304483660 | Fill Tube,spray Arm ,upper |
|
$ 14.81 | |||||
| 329 | 5304483661 | Dispensing Assembly,spray Arm ,upper |
|
$ 19.71 | |||||
| 330 | 5304483662 | Cover,motor ,w/insulation |
|
- | |||||
| 331 | 5304482455 | Duct,connecting ,(2) |
|
$ 20.58 | |||||
| 333 | 5304483453 | Support Assembly,motor ,w/pad |
|
$ 31.03 | |||||
| 334 | 5304482473 | Duct,connecting ,external Pipe |
|
$ 24.68 | |||||
| 336 | 5304483455 | Hose,pressure Switch |
|
$ 20.48 | |||||
| 338 | 5304483457 | Support,pressure Switch |
|
- | |||||
| 339 | 5304483663 | Tunnel,water |
|
$ 20.48 | |||||
| F305 | 5304483450 | Spray Arm,assembly ,lower |
|
$ 52.92 | |||||
| F313 | 5304483442 | Sump Assembly |
|
$ 51.03 | |||||
| F314 | 5304483441 | Thermistor |
|
Immediately | $ 43.95 | ||||
| F317 | 5304482472 | Thermostat,90 |
|
$ 21.06 | |||||
| F323 | 5304483444 | Pump,drain |
|
Immediately | $ 175.00 | ||||
| F326 | 5304483447 | Element Assembly,heating |
|
$ 165.11 | |||||
| F327 | 5304483659 | Spray Arm Assembly,upper |
|
$ 46.46 | |||||
| F332 | 5304483454 | Pump Assembly,motor ,w/capacitor |
|
$ 221.24 | |||||
| F335 | 4056016522 | Switch,pressure (Replaces: 5304482397) |
|
$ 25.52 | |||||
| F337 | 5304482406 | Valve,inlet |
|
Immediately | $ 69.62 |
