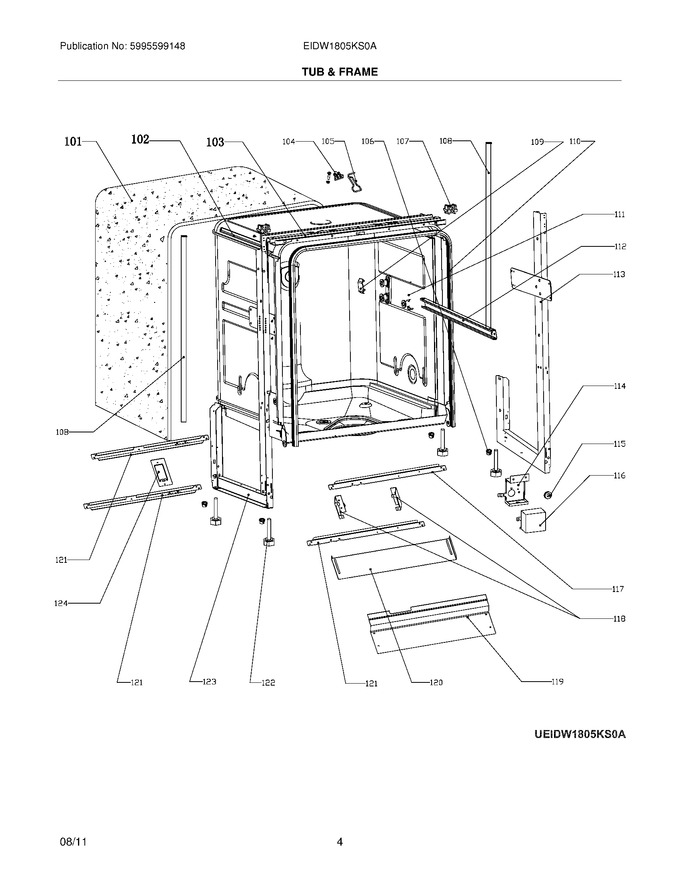

05 - Tub & Frame


07 - Motor & Pump


09 - Racks


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
101	5304483668		Insulation,blanket ,outer		Appelez-nous	-
103	5304483487		Brace Assembly,upper ,black ,front				$ 53.60
104	5304483484		Block,coupling				$ 16.01
105	5304483485		Hook,door Lock				$ 19.89
106	5304482409		Holder,leveling Foot ,(4)				$ 12.02
107	5304482372		Block,top ,black ,(2)		Appelez-nous	-
108	5304483631		Guard,tub Band ,(2)				$ 17.64
109	5304483632		Cap,guide Rail ,(4)		Appelez-nous	-
110	5304512895		Gasket,tub   (Replaces: 5304483491)			Immediately	$ 53.91
111	5304483633		Roller Assembly,tub ,(4)				$ 20.48
112	5304483489		Rail,guide ,upper Rack ,(2)				$ 43.24
113	5304482366		Upright Assembly,rh				$ 146.74
114	5304483494		Cover,junction Box				$ 21.97
115	5304483634		Grommet,junction Box		Appelez-nous	-
116	5304483495		Box,junction				$ 19.06
117	5304483502		Brace,back ,lower				$ 23.85
118	5304483492		Support,toeplate ,(2)				$ 19.06
119	5304483635		Toe Plate		Appelez-nous	-
120	5304483636		Toe Plate,adjustable		Appelez-nous	-
121	5304483501		Brace,front ,lower ,(3)				$ 38.80
122	5304482408		Foot,leveling ,(4)				$ 18.38
123	5304482365		Upright Assembly,lh				$ 119.65
124	5304482411		Bracket,motor Support		Appelez-nous	-
F102	5304483573		Tub Assembly		Appelez-nous	-
