01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

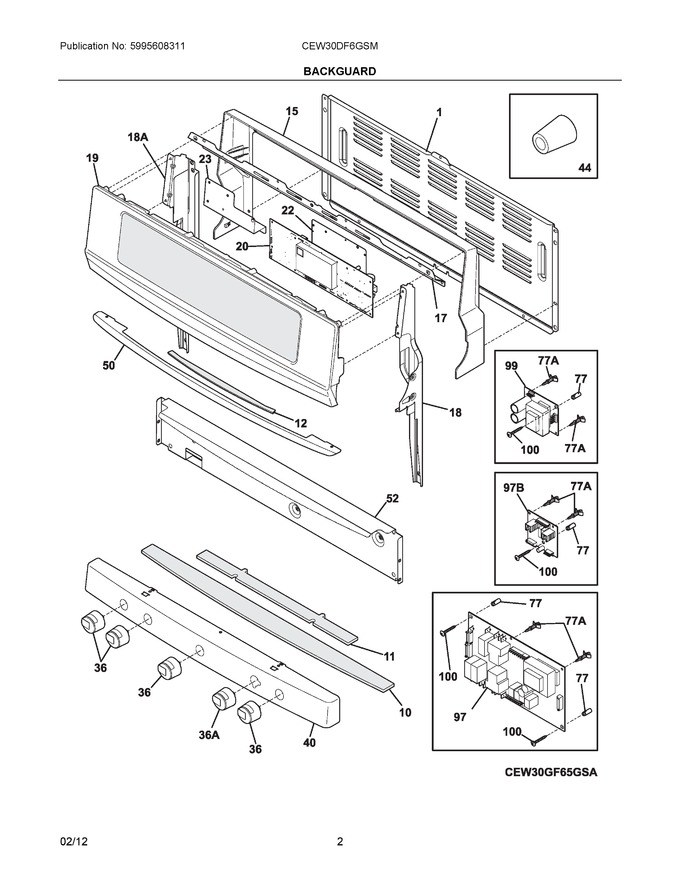

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316500100		Shield, Rear Wall		Appelez-nous	-
10	316528700		Insulation, Manifold Panel				$ 89.31
11	316528800		Insulation, Front Frame				$ 60.43
12	316538601		Insualtion, Deflector				$ 13.70
15	316500402		Wrapper, Backguard, Stainless				$ 326.94
17	316500301		Shield, Upper, Backguard		Appelez-nous	-
18	316526000		Channel, Support, Rh, Backguard		Appelez-nous	-
19	316538419		Control Panel Assembly, User Interface, W/ss Trim				$ 2,605.37
20	316576643		Clock/timer, Electronic, Es630a				$ 368.55
22	316520300		Bracket, Control Mtg.		Appelez-nous	-
23	316520400		Bracket, Triac Mtg.		Appelez-nous	-
36	316535711		Knob, Top Valve, Stainless, (4)				$ 186.27
40	316512708		Panel-manifold, Stainless		Appelez-nous	-
44	316246500		Spacer, Oven				$ 34.39
50	316537601		Deflector, Heat Shield, Stainless				$ 159.81
52	316514201		Shield, Backguard, Black, Inner				$ 50.87
77	316247900		Spacer, Power Board				$ 44.65
97	316443920		Board, Relay, Oven Control			Immediately	$ 403.75
99	316535200		Board, Power Supply, 8v, (2)				$ 408.36
100	5303289910		Screw, 8a, 1				$ 5.67
18A	316526001		Channel, Support, Lh, Backguard		Appelez-nous	-
36A	316535708		Knob, Top Valve, Stainless, (1)				$ 164.38
77A	316114100		Spacer				$ 60.96
97B	316519200		Board, Variable Speed			Immediately	$ 256.24
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316525600		Harness, Wiring, Backguard				$ 77.92
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316533900		Screw, Truss Hd, 8-16 X 1.5, (10)				$ 12.02
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316525500		Screw, Blunt Pnt Ph B, 8-18 X .875, (2)		Appelez-nous	-
NIA	131892100		Screw, Control Mtg, 6-32 X .25, (5)   (Replaces: 316524400)		Appelez-nous	-
