SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner

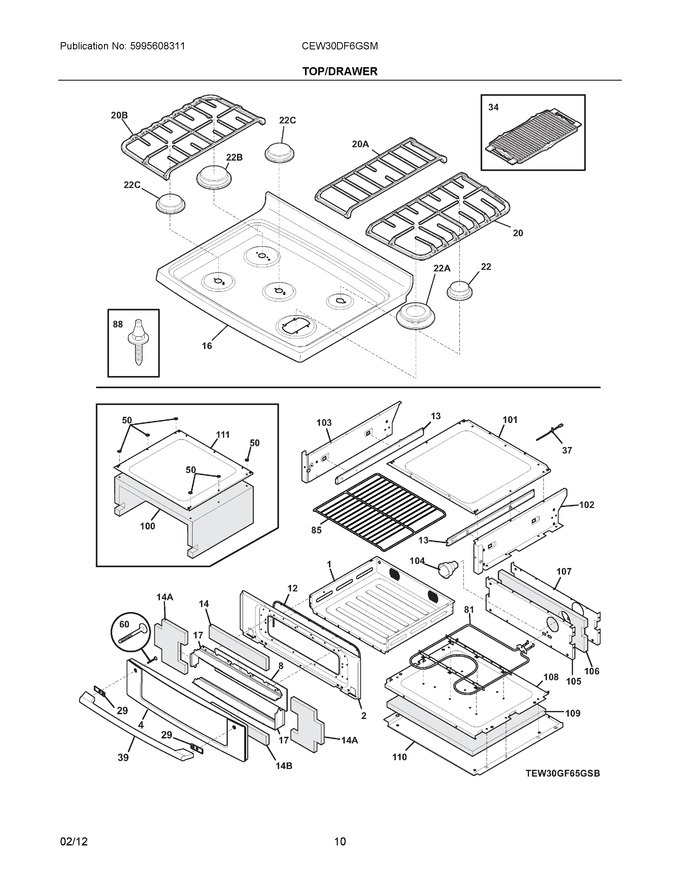

04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316414107		Drawer, Mini Oven, Cobalt				$ 116.71
2	316510301		Liner, Drawer, Cobalt, Mini Oven		Appelez-nous	-
4	316538207		Panel Assembly, Drawer Glass, Black, Outer, W/tape				$ 240.25
8	316431902		Glass, Inner Door, Mini Oven		Appelez-nous	-
12	316410702		Seal, Door, Mini Oven		Appelez-nous	-
13	316449801		Glide, Drawer, Mini Oven, (2)				$ 129.51
14	316451502		Insulation, Door Top, Mini Oven		Appelez-nous	-
16	316506823		Main Top, Stainless				$ 447.09
17	316508001		Spacer, Glass, (2)		Appelez-nous	-
20	316537800		Grate, Double Burner, Lh				$ 246.02
22	316548600		Cap, Burner, 5k, Black				$ 87.70
29	316505401		Spacer, Handle, Gray, (2)				$ 18.17
34	316534001		Griddle				$ 213.34
37	316217006		Probe, Oven Temp, Mini Oven				$ 74.42
39	241881301		Handle, Door, Stainless				$ 170.06
49	316260000		Clip, Maintop Mtg, (2)				$ 8.19
50	316452100		Fastener, Push Nut, (6)		Appelez-nous	-
60	5304507924		Screw, Handle Mtg, 10-24 X 2.188, (2)   (Replaces: 316513301)			Immediately	$ 16.48
81	316450903		Element, Bake, Mini Oven				$ 134.19
85	316411000		Rack, Mini Oven				$ 67.15
88	316099500		Pin, Guide, (2)				$ 6.53
100	316451300		Insulation, Wrapper, Mini Oven		Appelez-nous	-
101	316410201		Panel, Top, Mini Oven		Appelez-nous	-
102	316450501		Panel, Side, Rh, Mini Oven		Appelez-nous	-
103	316450503		Panel, Side, Lh, Mini Oven		Appelez-nous	-
104	316431501		Light Assembly, Mini Oven				$ 61.36
105	316450803		Panel, Back, Mini Oven		Appelez-nous	-
106	316451400		Insulation, Back, Mini Oven		Appelez-nous	-
107	316451603		Shield, Main Back, Mini Oven		Appelez-nous	-
108	316410101		Panel, Bottom, Mini Oven		Appelez-nous	-
109	316410800		Insulation, Floor, Mini Oven		Appelez-nous	-
110	316410401		Shield, Floor, Mini Oven		Appelez-nous	-
111	316450401		Shield, Top, Mini Oven		Appelez-nous	-
14A	316451501		Insulation, Door Sides, Mini Oven, (2)		Appelez-nous	-
14B	316414203		Insulation, Door Bottom, Mini Oven				$ 12.02
20A	316537900		Grate, Burner, Center				$ 227.28
20B	316538000		Grate, Double Burner, Rh				$ 242.06
22A	316511502		Cap, Burner, 18k, Black				$ 248.45
22B	316548800		Cap, Burner, 14k, Black				$ 131.46
22C	316548700		Cap, Burner, 9.5k, Black, (2)				$ 134.23
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46

    View Diagram in Separate Window       Print Part List
