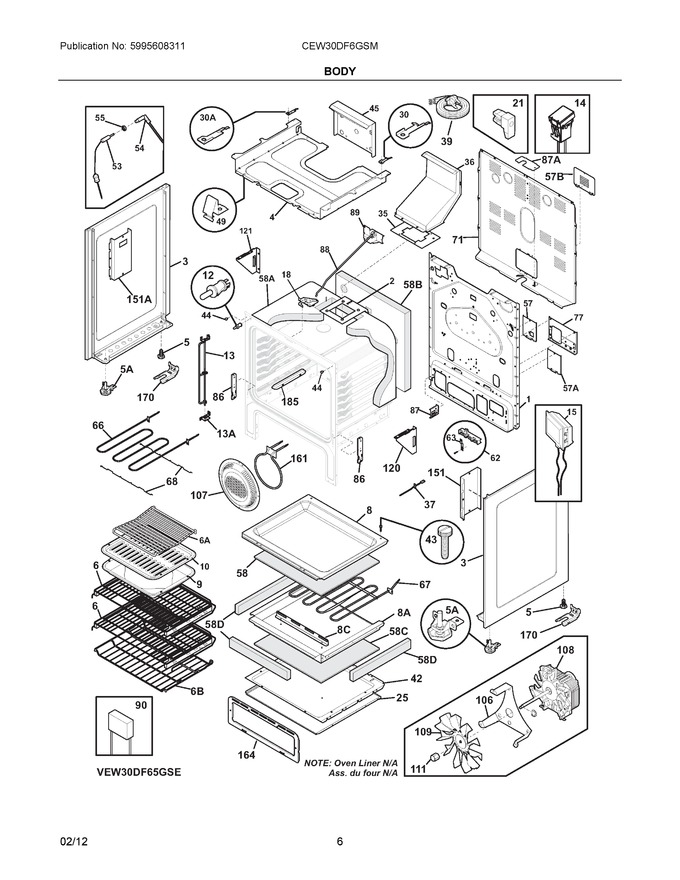

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316504503		Back, Main		Appelez-nous	-
2	316525800		Brace, Oven Top		Appelez-nous	-
3	316400124		Panel, Bodyside, Stainless, Rh				$ 141.49
4	316505301		Box, Burner		Appelez-nous	-
5	316272900		Screw, Leveling, Plastic, Rear, (2)			Immediately	$ 27.50
6	316571800		Rack Assembly, W/glides				$ 290.93
8	316505602		Panel, Cobalt, Oven Bottom				$ 158.06
9	316081901		Pan, Broiler, Cobalt Blue				$ 74.32
10	316082001		Insert, Broiler Pan, Cobalt Blue				$ 53.09
12	316445500		Switch, Oven Light, Door Frame			Immediately	$ 54.74
13	316529005		Lever Assembly, Rack Sensing				$ 102.01
14	316508301		Switch Assembly, Rack Sensing				$ 207.03
15	316510701		Lamp, Oven, (2), Halogen				$ 157.97
18	316405800		Latch Assembly, Oven Door			Immediately	$ 56.74
21	316408000		Clip, Bodyside				$ 18.20
25	316505900		Shield, Lower, Bake		Appelez-nous	-
30	316217700		Bracket, Hinge, Rh, Main Top				$ 13.42
35	316542102		Gasket-flue   (Replaces: 316542100)				$ 12.13
36	316507901		Flue, Cobalt		Appelez-nous	-
37	316490000		Probe, Oven Temp			Immediately	$ 58.30
39	318113111		Cord, Electric				$ 95.55
42	316407700		Shield, Wool, Lower				$ 131.19
43	316282700		Screw, 8-18 X 1.438, Oven Bottom   (Replaces: 3131732)				$ 9.93
44	316517600		Spacer, Oven Door				$ 12.05
45	316508501		Shield, Flue		Appelez-nous	-
49	316260000		Clip, Maintop Mtg, (2)				$ 8.19
53	5304503737		Probe, Meat Temp   (Replaces: 318601304)				$ 99.33
54	316536902		Receptacle, Probe				$ 143.59
55	316247700		Nut, Mounting				$ 18.20
57	316451100		Cover, Access, W/holes		Appelez-nous	-
58	316509500		Insulation, Bake Element				$ 45.09
62	5303935061		Terminal Block Kit		Appelez-nous	-
63	316278800		Plate, Grounding Strap		Appelez-nous	-
66	316203301		Element, Broil   (Replaces: 316200600)			Immediately	$ 182.39
67	316505500		Element, Bake, 3500w   (Replaces: 316505501)			Immediately	$ 259.25
68	316429200		Support, Element, Broil, (2)		Appelez-nous	-
71	316283202		Shield, Rear Wall		Appelez-nous	-
77	316451201		Plate, Mounting, Safety Valve				$ 11.76
86	316580700		Receptacle, Hinge, (2)			Immediately	$ 30.47
87	316451001		Bracket, Harness, Mini Oven		Appelez-nous	-
88	316232702		Rod, Auto Latch   (Replaces: 316232700)				$ 12.89
89	5304528973		Motor-latch   (Replaces: 316464300)			Immediately	$ 52.34
90	316539900		Filter, Noise, Lock Motor, Suppressor				$ 68.61
106	316404100		Bracket, Motor Mtg.				$ 63.70
107	316026702		Cover, Fan				$ 67.94
108	316256100		Motor-fan			Immediately	$ 211.18
109	318398302		Fan Blade			Immediately	$ 29.11
111	316136600		Nut, Fan Retainer			Immediately	$ 19.13
120	316279204		Bracket, Stiffener, Rh		Appelez-nous	-
121	316279205		Bracket, Stiffener, Lh		Appelez-nous	-
151	316404600		Shield, Bodyside				$ 49.30
161	316211603		Element, Convection Fan, 350 W				$ 255.86
164	316450302		Trim, Front, Mini Oven		Appelez-nous	-
170	316112005		Anti Tip Kit, Assembly   (Replaces: 316112004)			Immediately	$ 18.91
185	316112900		Shield, Thermo Bulb		Appelez-nous	-
13A	316543000		Bracket, Lever, Lower, Rack Sensing				$ 20.80
151A	316404601		Shield, Bodyside				$ 21.27
30A	316217701		Bracket, Hinge, Lh, Main Top				$ 13.00
3A	316400125		Panel, Bodyside, Stainless, Lh				$ 149.00
57A	316451101		Cover, Access, W/o Holes		Appelez-nous	-
57B	316283600		Cover, Access				$ 12.50
58A	316403700		Insulation, Oven Wrapper				$ 304.06
58B	316403601		Insulation, Oven Back				$ 59.06
58C	316509600		Insulation, Lower Shield		Appelez-nous	-
58D	316509700		Insulation, Oven Bottom				$ 60.25
5A	5304509869		Leveling Leg Assy, Metal, Front, (2), Bracket & Leg   (Replaces: 316498900)			Immediately	$ 15.08
6A	318219500		Rack, Broiler Pan		Appelez-nous	-
6B	316496205		Rack, Oven				$ 134.67
87A	316081202		Bracket, Cable Mtg				$ 4.96
8A	316505701		Base, Bake Element				$ 244.44
8C	316505801		Support, Element				$ 25.48
NI	5303289910		Screw, 8a, 1				$ 5.67
NI	316581300		Retainer, Wire				$ 4.26
NI	316279600		Screw, Bracket, Stiffener, (4)				$ 12.05
NI	316282700		Screw, W/washer, 8-18				$ 9.93
NI	316539800		Retainer, Wire				$ 14.41
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021132		Screw, 8-18 X 11/16, Black, (3)				$ 12.89
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316512569		Harness Wiring, Main		Appelez-nous	-
NIA	316534100		Washer, Flat, Meat Probe				$ 14.89
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIA	316112005		Bracket, Anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
NIB	316116000		Screw, Concrete, 1.75", Anti-tip Brkt				$ 12.89
NIB	316205500		Nut, Hex Flange, 3/8 10-32				$ 11.34
NIC	316541700		Template, Anti-tip		Appelez-nous	-
