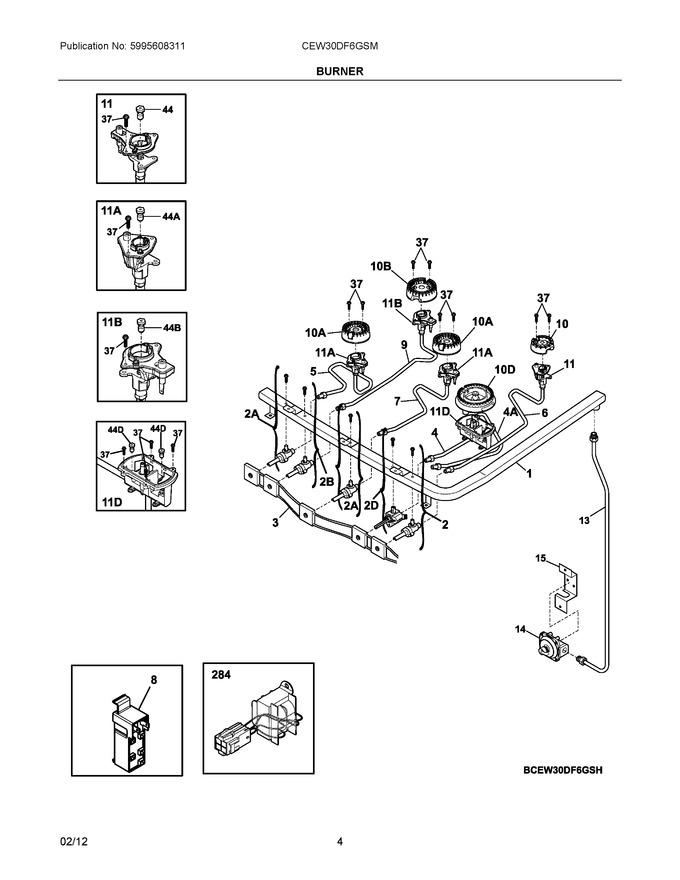

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316505200		Manifold		Appelez-nous	-
2	5303935308		Valve, 5k Top Burner, W/mtg Screw				$ 70.88
3	316580622		Harness-ignitor				$ 75.97
4	316509000		Tube, Burner, Right Front				$ 95.34
5	316509300		Tube, Burner, Rf & Lf, (2)		Appelez-nous	-
6	316509200		Tube, Burner, Rr		Appelez-nous	-
7	316509400		Tube, Burner, Center				$ 117.28
8	5304508269		Module, Spark   (Replaces: 316262400)			Immediately	$ 105.46
9	316526600		Tube, Burner, Left Rear				$ 107.69
10	316438200		Burner, Sealed, 5k			Immediately	$ 56.70
11	316540800		Ignitor/orifice Assy., Top Burner, 5k, W/holder				$ 11.20
13	316545700		Tube, 3/8, Aluminum, Rgltr To Manf, With Fittings				$ 148.58
14	318122700		Regulator, Pressure				$ 139.63
15	316091600		Bracket, Regulator				$ 73.56
37	316540900		Screw, Burner, Head Mtg, (8)			Immediately	$ 15.17
44	316527504		Orifice, Burner, 5k				$ 22.68
284	316536100		Transformer			Immediately	$ 210.83
10A	316558300		Burner, Sealed, 9.5k			Immediately	$ 52.45
10B	316438600		Burner, Sealed, 14k			Immediately	$ 79.80
10D	316525401		Burner, Sealed, Dual, 18k				$ 187.54
11A	316540700		Ignitor/orifice Assy., Top Burner, 9.5k, W/holder				$ 11.15
11B	316543204		Ignitor/orifice Assy., Top Burner, 14k				$ 12.33
11D	316525100		Ignitor/orifice Assy., Top Burner, 18k, W/holder		Appelez-nous	-
2A	5303935305		Valve, 9.5k Burner, W/mtg Screw			Immediately	$ 77.26
2B	5303935307		Valve, 14k Top Burner, W/mtg Screw				$ 90.72
2D	316574905		Valve, Top Burner, 18k				$ 119.12
44A	316527500		Orifice, Top Burner, 9.5k				$ 21.40
44B	316527511		Orifice, Top Burner, 14k				$ 19.85
44D	316523508		Orifice, Top Burner, 18k				$ 13.23
4A	316509100		Tube, Burner, Right Front				$ 91.40
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316215600		Screw, Valve Mtg., 1/4 - 20			Immediately	$ 14.18
NI	316443201		Bracket-support		Appelez-nous	-
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316526900		Harness, Ignitor				$ 70.88
NIA	316021104		Screw, Hex, 8-18 X 3/8, Nick, (3), Regulator Brkt				$ 7.79
NIDA	316434900		Shield, Valve, Bridge Burner				$ 11.55
