SELECT A DIAGRAM

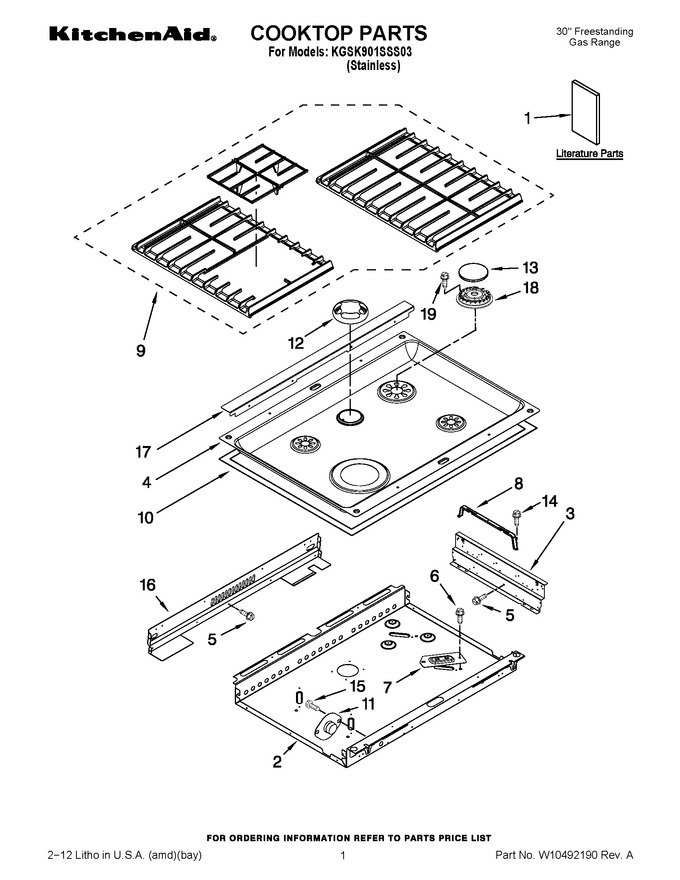

01 - Cooktop Parts


02 - Oven Parts


03 - Door Parts


04 - Drawer Parts


05 - Top Venting Parts


06 - Internal Oven Parts


07 - Cooktop Burner Parts


08 - Control Panel Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9763467		Guide Easy Set		Appelez-nous	-
1	9762761		Safe Cooking Tips (english)		Appelez-nous	-
1	W10065852		Safe Cooking Tips (french)		Appelez-nous	-
1	W10440537		Installation Instructiions		Appelez-nous	-
1	W10449875		Use & Care Guide		Appelez-nous	-
1	W10221015		Tech Sheet		Appelez-nous	-
2	W10208808		Burner Box		Appelez-nous	-
3	9761784		Bracket, Mounting		Appelez-nous	-
4	W10175854		Cooktop				$ 195.36
5	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
6	WP12990527		Screw   (Replaces: 3400843)			Immediately	$ 7.15
7	9763445		Bracket, Burner		Appelez-nous	-
8	9756821		Support, Wiring		Appelez-nous	-
9	W10338776		Kit, Burner Grate				$ 174.64
10	W10109920		Gasket (tape)				$ 43.42
11	WP9759944		Thermostat   (Replaces: 9759944)			Immediately	$ 121.57
12	9760225BL		Vent, Center				$ 39.30
13	WP9763502CB		Cap, Burner   (Replaces: 9763502CB)				$ 120.89
14	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
15	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.47
16	9759627		Cover, Cooktop Rear				$ 67.22
17	WP9763436		Cover, Top Rear   (Replaces: 9763436)				$ 127.77
18	WPW10406243		Head, Burner (lr, Rf (auxi))   (Replaces: 8286181)			Immediately	$ 33.50
18	9762553		Head, Burner (lf (turbo))				$ 127.47
18	WPW10406797		Head, Burner (rr (rapide))   (Replaces: 8286182)				$ 79.64
19	WP3368921		Screw   (Replaces: 3368921)			Immediately	$ 6.42
