Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10162096 Screw Special Order $ 18.77

2 9763501BL Support, Front & Rear Special Order $ 43.72

3 4453720 Brace, Drawer (right) Special Order $ 34.27

3 4453721 Brace, Drawer (left) Special Order $ 34.27

4 9759965 Braket, Base Side Appelez-nous -
5 9759954 Side, Base (left) Special Order $ 88.47

5 9759953 Side, Base (right) Special Order $ 108.70

6 WPW10058460 Foot   (Replaces: W10058460) In-Stock Immediately $ 7.07

7 9759943 Brace, Base Front Appelez-nous -
8 WP3196037 Foot Assembly   (Replaces: 3196037) Special Order $ 74.67

9 9756838 Rail, Storage (left) Appelez-nous -
9 9756836 Rail, Storage (right) Appelez-nous -
10 9757806 Drawer Special Order $ 182.02

11 9756842 Includes Roller (left) Special Order $ 70.28

11 9756841 Includes Roller (right) Appelez-nous -
12 9760592 Panel, Drawer Appelez-nous -
13 W10203763 Front, Drawer Special Order $ 99.87

14 W10292374 Handle, Drawer Special Order $ 100.87

15 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.16


    View Diagram in Separate Window     Print Icon   Print Part List

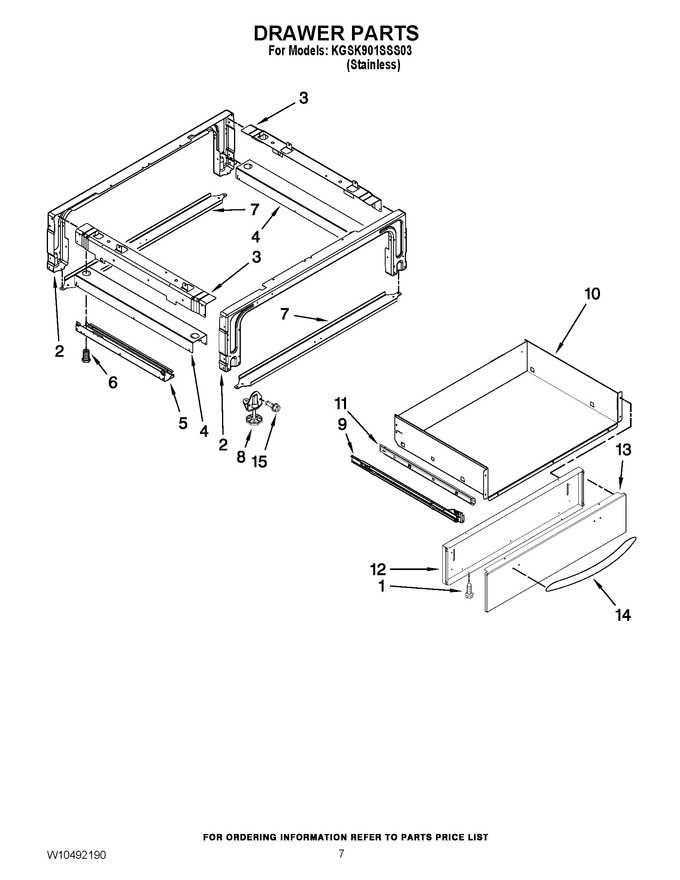

Diagram for KGSK901SSS03
