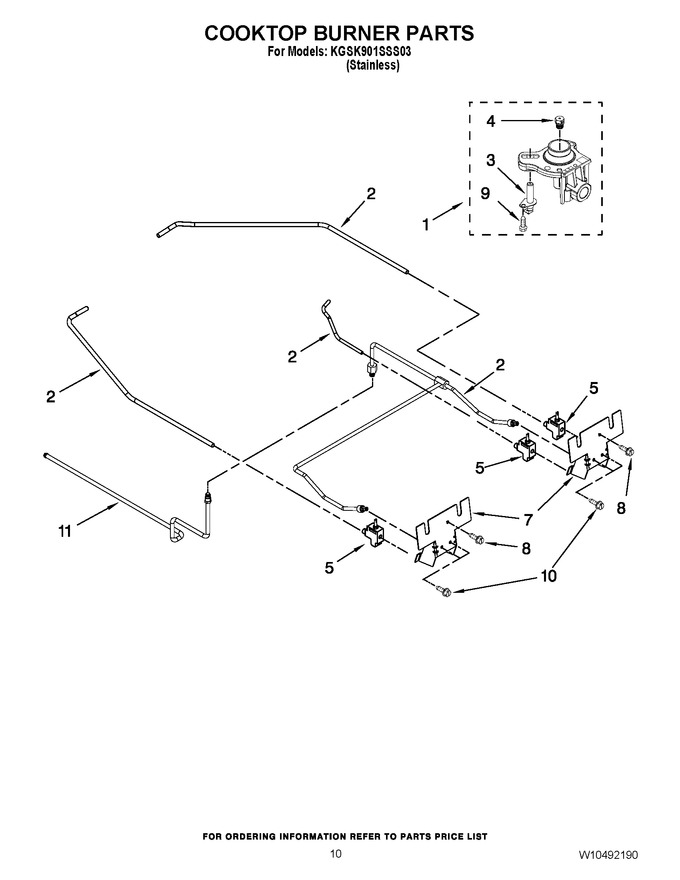

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10128455 | Burner Base (rr (rapide)) |
|
$ 48.58 | |||||
| 1 | W10128456 | Burner Base (lf (turbo)) |
|
$ 47.21 | |||||
| 1 | WPW10128446 | Burner Base (lr, Rf (auxi)) (Replaces: W10128446) |
|
Immediately | $ 97.44 | ||||
| 2 | 9761070 | Tubing, Burner (rr (rapide)) |
|
$ 52.24 | |||||
| 2 | 9761069 | Tubing, Burner (rf (auxi)) |
|
$ 49.98 | |||||
| 2 | 9761561 | Tubing, Burner (lf (turbo)) |
|
- | |||||
| 2 | 9761068 | Tubing, Burner (lr (auxi)) |
|
$ 50.22 | |||||
| 3 | WPW10110378 | Ingiter, Orifice (Replaces: W10110378) |
|
Immediately | $ 46.89 | ||||
| 4 | 9762939 | Orifice, Spud (lf (turbo)) |
|
- | |||||
| 4 | 9762938 | Orifice, Spud (rr (rapide)) |
|
$ 67.28 | |||||
| 4 | 9762937 | Orifice, Spud (lr,rf (auxi)) |
|
$ 88.97 | |||||
| 5 | WP4456817 | Valve, Burner (rr (rapide)) (Replaces: 4456817) |
|
$ 286.38 | |||||
| 5 | WP4456816 | Valve, Burner (lr, Rf (auxi)) (Replaces: 4456816) |
|
Immediately | $ 286.55 | ||||
| 5 | 4456818 | Valve, Burner (lf (turbo)) |
|
$ 231.30 | |||||
| 7 | 9761648 | Manifold, Cooktop |
|
$ 66.48 | |||||
| 8 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 9 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.12 | ||||
| 10 | 12002277 | Bolt, Valve (Replaces: 7101P640-60) |
|
$ 272.78 | |||||
| 11 | 4453754 | Tubing Gds To Manifold |
|
$ 208.86 |
