Diagram for 06 - Internal Oven Parts
06 - Internal Oven Parts

Diagram for 07 - Cooktop Burner Parts
07 - Cooktop Burner Parts

Diagram for 08 - Control Panel Parts
08 - Control Panel Parts

Diagram for 09 - Optional Parts (not Included)
09 - Optional Parts (not Included)


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 9752980 Shield, Flame Special Order $ 38.26

2 9757779 Fitting, Broiler Special Order $ 130.68

3 WPW10179152 Rack, Oven   (Replaces: W10179152) In-Stock Immediately $ 107.65

4 W10207402 Element, Broil Special Order $ 125.73

5 WPW10145744 Pan Support, Bake   (Replaces: W10145744) Special Order $ 183.56

6 WP9760229 Electrode, Bake   (Replaces: 9760229) In-Stock Immediately $ 139.47

7 WP9760228 Burner, Bake Log   (Replaces: 9760228) Special Order $ 225.21

8 9752737 Shield, Oven Special Order $ 22.04

9 W11233072 Screw   (Replaces: 3196176) In-Stock Immediately $ 12.62

9 4453984 Shield, Bake Flame Appelez-nous -
10 WP9763716 Valve, Assemble   (Replaces: 9763716) In-Stock Immediately $ 481.13

11 9756831 Tube, Broil Special Order $ 155.53

12 W10111219 Burner, Broil Special Order $ 94.75

13 WP8054129 Ignitor, Broil   (Replaces: 8054129) In-Stock Immediately $ 123.43

14 4454009 Cover, Ignitor Special Order $ 5.31

15 WPW10272546 Pan, Oven Bottom   (Replaces: W10272546) In-Stock Immediately $ 190.73

16 W10153101 Diverter, Air Special Order $ 33.97

17 W11233072 Screw   (Replaces: 3196176) In-Stock Immediately $ 12.62

18 WP4449154 Screw   (Replaces: 4449154) Special Order $ 6.80


    View Diagram in Separate Window     Print Icon   Print Part List

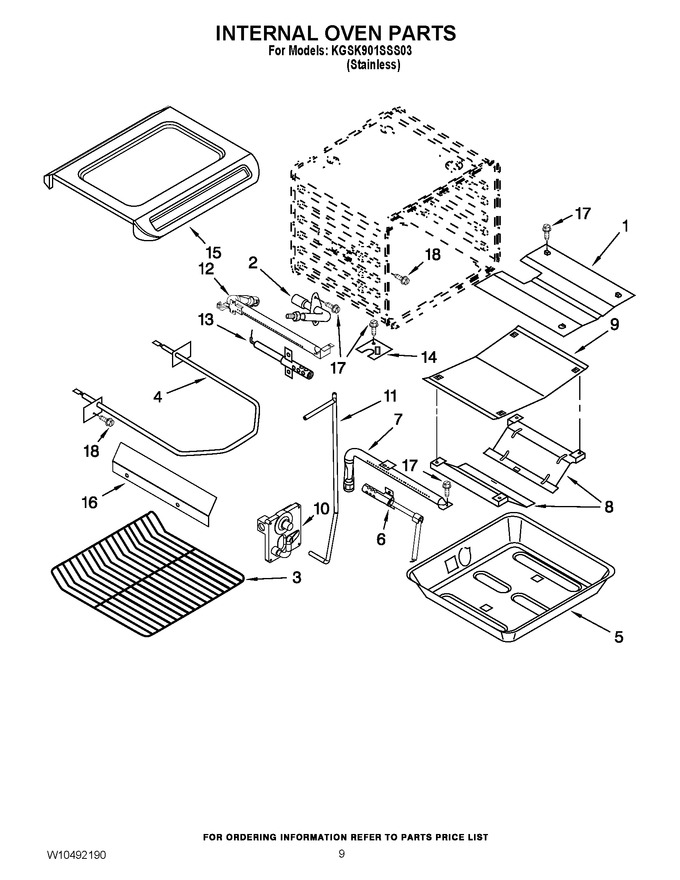

Diagram for KGSK901SSS03
