SELECT A DIAGRAM

01 - Cover


03 - Control Panel


05 - Door


07 - Tub


09 - Motor & Pump


11 - Frame


13 - Racks


14 - Wiring Diagram

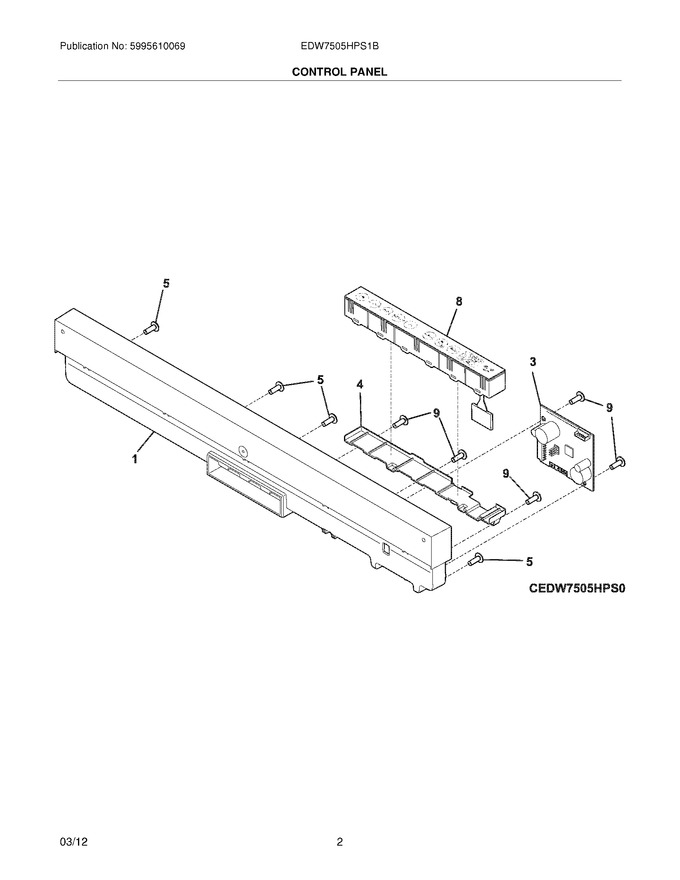

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154694301		Console,control ,black				$ 121.53
4	154723001		Support,touch Assembly				$ 19.32
5	154603701		Screw,ph ,no.10-16 Hi-lo ,(6) ,6 Lobe				$ 9.77
9	154625702		Screw,ft Ph 6 Lobe ,no.8-18				$ 7.98
F3	154807601		Control Board,assembly ,user Interface				$ 128.10
F8	154831301		Touch Assembly,control ,w/overlay				$ 153.09
FNI	154833501		Harness,wiring ,main				$ 78.32
NI	154849243		Energy Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
