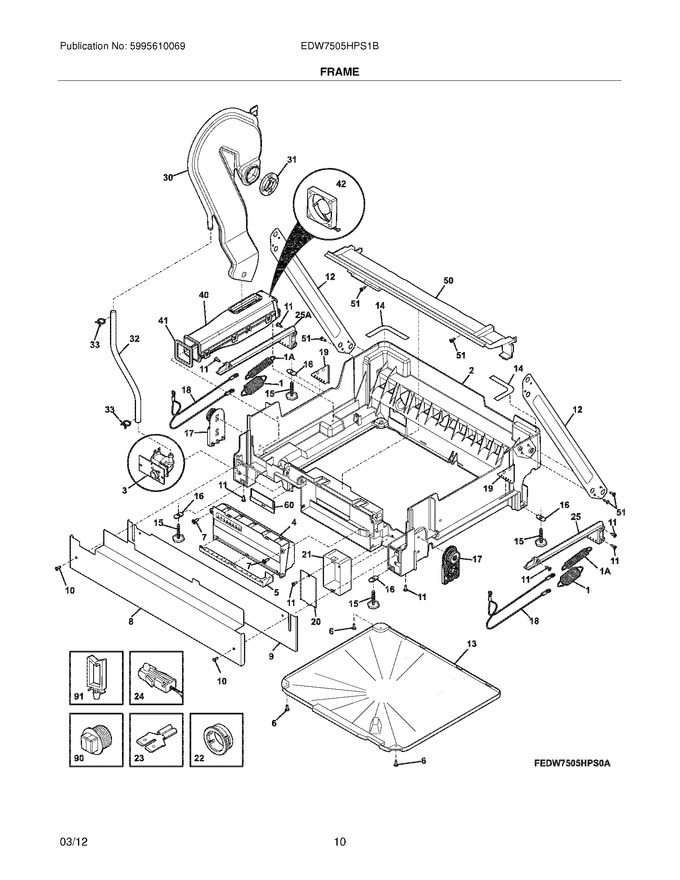

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	154502602		Base,frame Mounting		Appelez-nous	-
5	154624701		Bracket,control Housing				$ 12.08
6	154294701		Screw,no.7 Plas .375 ,(6) ,disp. Assy.				$ 9.22
7	154673501		Screw,6 Lobe Recess ,no.10 Hi Lo				$ 10.29
8	154658006		Kickplate,stainless ,w/label				$ 55.86
9	154679306		Toe Plate,adjustable ,stainless ,w/damper				$ 67.58
10	154697201		Screw,toe Plate Mtg ,8-18 X .39 ,stainless,(2)				$ 13.39
11	154518301		Screw,6 Lobe Recess ,no.8-18				$ 8.61
12	154501301		Frame,diagonal ,leg ,(2)		Appelez-nous	-
13	154658101		Tray,base ,w/label				$ 69.46
14	154610301		Tape,connection ,(2) ,base To Tub				$ 10.55
15	5304506540		Leg,leveling ,(4)   (Replaces: 154571101)			Immediately	$ 10.85
16	154515401		Plate,mounting ,(4) ,leveling Leg				$ 5.51
17	154856901		Bracket Assembly,pulley,(2) .				$ 86.36
18	154697101		Cable,hinge Pulley ,(2)				$ 138.81
19	154514901		Plate,adjustment ,(2) ,door Spring				$ 15.08
20	154658201		Cover,junction Box ,w/label				$ 32.77
21	154517501		Box,junction		Appelez-nous	-
22	154610701		Grommet,electrical		Appelez-nous	-
23	154671801		Connector,ground ,1 Female ,to 2 Male		Appelez-nous	-
25	154696601		Bracket,door Spring ,rh		Appelez-nous	-
30	154617901		Duct Assembly,side Drying ,w/gasket				$ 150.41
31	154618301		Cover,drying Inlet				$ 11.66
32	154625001		Tubing,water Inlet				$ 17.01
33	5304538466		Clamp-tubing,(2)   (Replaces: 5303318539)				$ 2.31
41	154617801		Gasket,drying Duct ,lower				$ 14.70
50	154818901		Adaptor Plate,assembly ,w/shield		Appelez-nous	-
51	154518001		Screw,pan Head ,no.10-16 X .8``				$ 10.54
60	154622701		Cover,valve Service		Appelez-nous	-
90	154679801		Plug,water Valve		Appelez-nous	-
91	154692601		Clip,wiring		Appelez-nous	-
1A	154696901		Spring,door ,secondary				$ 35.42
25A	154696701		Bracket,door Spring ,lh		Appelez-nous	-
F24	154761201		Light Assembly,cleaning				$ 24.10
F3	154513601		Valve Assembly,water				$ 84.79
F4	154750502		Control Assembly			Immediately	$ 341.22
F40	154617602		Duct Assembly,lower Drying ,w/motor				$ 73.03
F42	154619101		Motor,drying		Appelez-nous	-
FNI	154833301		Harness,wiring,lh Side,base .				$ 53.34
FNI	154833401		Harness,wiring,rh Side,base .				$ 111.30
NI	154689201		Deflector,valve				$ 10.50
NI	154672301		Screw,6 Tri Lobe ,no.10 Ph ,(2)		Appelez-nous	-
