SELECT A DIAGRAM

01 - Cover


03 - Control Panel

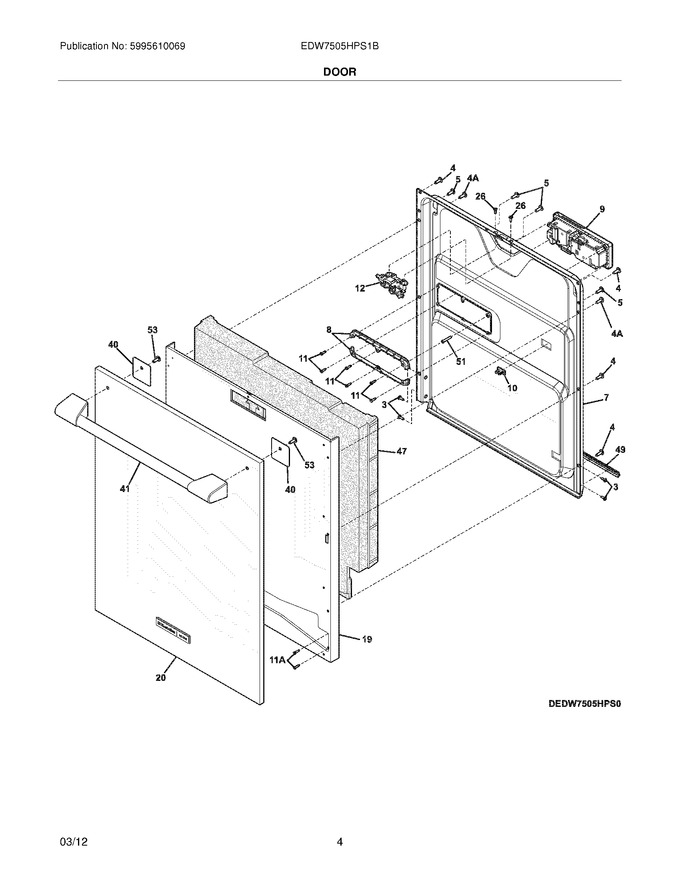

05 - Door


07 - Tub


09 - Motor & Pump


11 - Frame


13 - Racks


14 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	154518201		Screw,6 Lobe Recess ,no.10-32 ,(4)				$ 7.88
4	154603802		Screw,low Profile ,truss ,(6)				$ 10.82
5	154603701		Screw,ph ,no.10-16 Hi-lo ,(6) ,6 Lobe				$ 9.77
7	154840001		Liner Assembly,door ,inner ,w/mastic-wiper				$ 228.69
8	154670901		Bracket,dispenser Mtg. ,(2)				$ 9.29
9	5304507354		Dispenser,det/rinse Aid ,w/reed Switch   (Replaces: 154574406)			Immediately	$ 77.60
10	154633501		Clip,wiring Harness		Appelez-nous	-
11	154625702		Screw,ft Ph 6 Lobe ,no.8-18				$ 7.98
12	154671402		Latch Assembly,door ,w/shield			Immediately	$ 96.88
19	154603201		Frame,door Panel Mtg				$ 168.21
20	154795101		Door Assembly,outer ,stainless ,w/badge				$ 286.13
26	154519101		Screw,phlps Hd ,no.10-16 Hi Lo ,(4)		Appelez-nous	-
40	154603401		Plate,handle Support ,(2)			Immediately	$ 16.30
41	154743101		Handle Assembly,door ,stainless				$ 234.94
47	154746601		Moisture Barrier,assembly ,door ,w/data Sheet				$ 42.42
49	154859401		Gasket,door Bottom				$ 30.50
51	154320301		Clamp,drip Loop ,wire				$ 62.69
53	154693101		Screw,handle Mtg. ,10-32 ,(2)				$ 10.45
11A	154518301		Screw,6 Lobe Recess ,no.8-18				$ 8.61
4A	154603801		Screw,low Profile ,truss ,(6)				$ 15.75
NI	154735601		Screw,wood ,1.625`` ,(6) ,outer Panel				$ 13.60

    View Diagram in Separate Window       Print Part List
