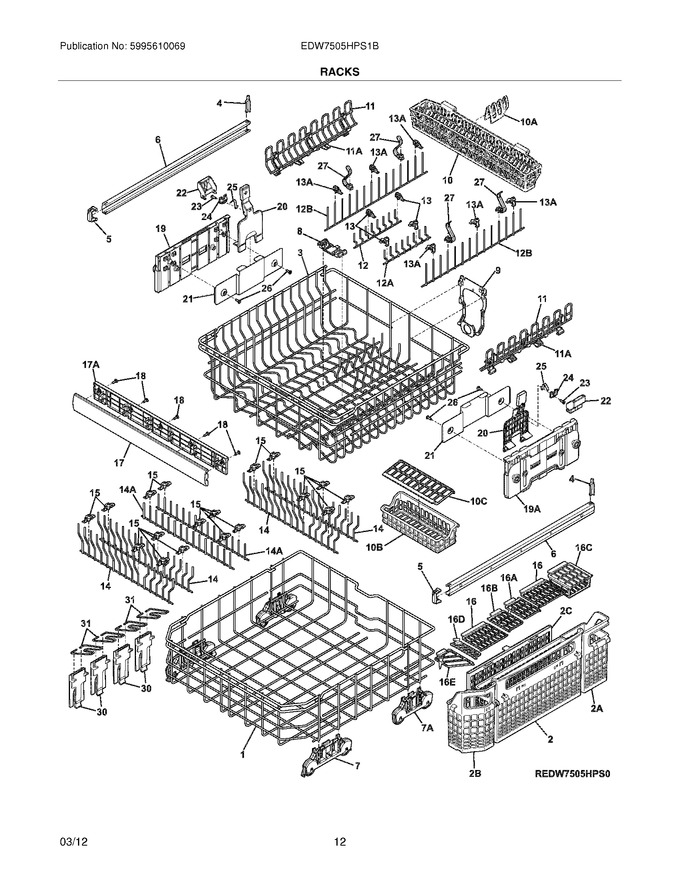

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154625401		Rack Assembly,lower				$ 279.51
2	154632402		Basket,silverware ,main ,center				$ 37.83
3	154694701		Rack Assembly,upper				$ 247.96
4	154510902		Clip,guide Rail ,rear ,(2)				$ 17.31
5	154510807		Cap,guide Rail ,front ,(2)		Appelez-nous	-
6	154510401		Guide Rail,upper Rack ,(2)				$ 28.35
7	154671301		Roller Assembly,lower Rack ,front ,(2)				$ 41.40
8	154610501		Bracket,spray Arm ,middle ,mounting				$ 16.75
9	154613402		Clip,manifold Mtg ,back				$ 98.46
10	154581204		Basket Assy,knife Holder				$ 79.75
11	154629002		Shelf,cup ,upper Rack ,(2)				$ 94.65
12	154629302		Fence,fold Down ,lh Center ,upper Rack				$ 18.57
13	154629403		Clip,fold Down Fence ,upper Rack ,(4)				$ 10.55
14	154720903		Fence,fold Down ,lower Rack ,(2) ,full Length				$ 23.78
15	154428402		Bracket,fence ,lower Rack ,(18)   (Replaces: 154428404)			Immediately	$ 25.05
16	154631402		Lid,main Basket ,side ,(2)		Appelez-nous	-
17	154694501		Handle,front ,upper Rack ,elux Icon				$ 129.25
18	154698001		Screw,handle ,8-10 ,upper ,(5)		Appelez-nous	-
19	154673701		Plate Assembly,adjustment Mech ,rh Outer,upper Rack				$ 194.67
20	154655102		Actuator Pad,assembly ,upper Rack ,(2) ,mechanical Adj				$ 39.21
21	154630101		Plate,adjustment Mtg. ,inner ,(2) ,upper Rack				$ 44.15
22	154630301		Housing,adjustment Mech ,upper Rack ,(2)				$ 13.71
23	154629701		Screw,upper Rack				$ 9.66
24	154655201		Clamp,actuator ,upper Rack ,(2) ,adjustment Mech				$ 4.50
25	154630201		Spring,adjustment Mech ,upper Rack ,(2)				$ 10.97
26	154673501		Screw,6 Lobe Recess ,no.10 Hi Lo				$ 10.29
27	154528804		Clip,cup ,(4)				$ 9.61
30	154632302		Clip,holder ,champagne ,(4)		Appelez-nous	-
31	154632201		Holder,champagne Glass ,(2)		Appelez-nous	-
10A	154581304		Holder,snap In		Appelez-nous	-
10B	154632102		Tray,utility		Appelez-nous	-
10C	154652002		Lid,utility Tray		Appelez-nous	-
11A	154629102		Clip,cup Shelf ,upper Rack ,(2)				$ 18.27
12A	154654302		Fence,fold Down ,rh Center ,upper Rack				$ 17.54
12B	154652102		Fence,fold Down ,upper Rack				$ 23.42
13A	154652203		Clip,fence ,upper Rack ,(6)				$ 17.75
14A	154781802		Fence,fold Down ,lower Rack ,(4)				$ 22.58
16A	154632502		Lid,main Basket ,lh Center		Appelez-nous	-
16B	154651702		Lid,main Basket ,rh Center		Appelez-nous	-
16C	154649002		Lid,basket ,knife		Appelez-nous	-
16D	154651802		Lid,basket ,chopsticks		Appelez-nous	-
16E	154634902		Lid,basket ,rh Side		Appelez-nous	-
17A	154694601		Handle,back ,upper Rack				$ 78.59
19A	154673601		Plate Assembly,adjustment Mech ,lh Outer,upper Rack				$ 167.27
2A	154632602		Basket,silverware ,side ,rear		Appelez-nous	-
2B	154632702		Basket,silverware ,side ,front				$ 22.26
2C	154653001		Holder,silverware ,flexible				$ 105.42
7A	154689501		Roller Assembly,lower Rack ,rear ,(2)				$ 49.40
