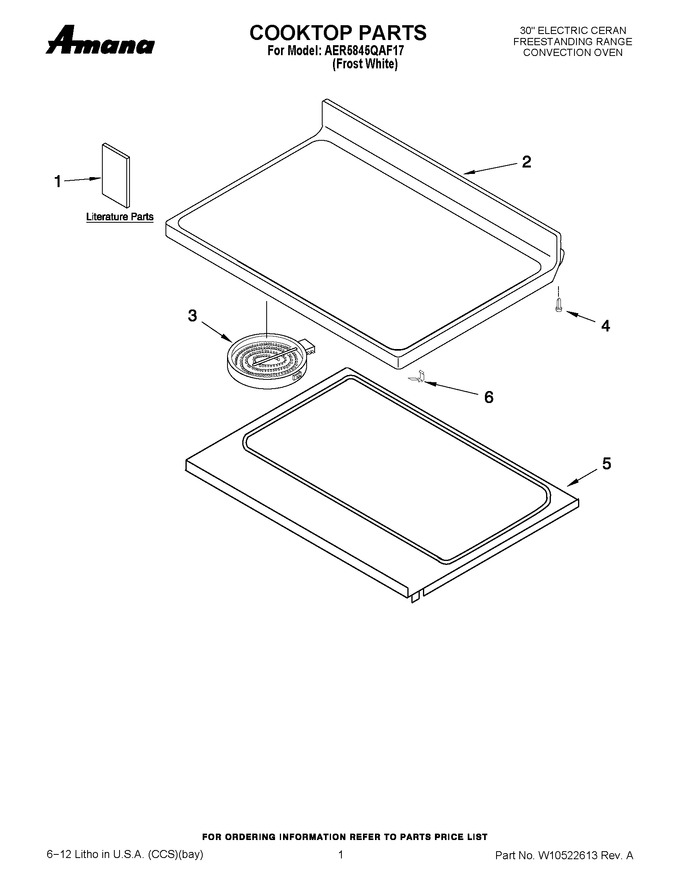

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer And Rack Parts


05 - Door Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8101P506-60		Installation Instructions		Appelez-nous	-
1	8110P250-60		Template, Anti-tip		Appelez-nous	-
1	8116P015-60		Brochure, Tips Safe Cooking		Appelez-nous	-
1	8113P548-60		Owner?s Manual		Appelez-nous	-
2	W10260321		Cooktop		Appelez-nous	-
3	W10823711		Element, Surface (1200 W - Lr & Rr)   (Replaces: 7406P365-60)			Immediately	$ 183.95
3	7406P369-60		Element, Surface (center)		Appelez-nous	-
3	W10823692		Element, Surface (2400 W - Lf & Rf)   (Replaces: 7406P403-60)			Immediately	$ 204.83
4	74008761		Spacer, Snap-in   (Replaces: 8010P149-60)				$ 7.55
5	4011F399-51		Box, Burner		Appelez-nous	-
6	74007134		Spring, Locator   (Replaces: 7803P087-60)				$ 10.51
