Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3608F139-71 Trim, Top Appelez-nous -
2 WP74006515 Screw   (Replaces: 7101P544-60) Special Order $ 7.29

3 7701P463-60 Handle, Door Special Order $ 92.43

4 2402W297-19 Liner, Door Special Order $ 152.41

5 3801P857-45 Bracket, Handle (right Hand) Appelez-nous -
5 3801P858-45 Bracket, Handle (left Hand) Special Order $ 6.01

6 74003645 Glass, Inner   (Replaces: 7902P436-60) In-Stock Immediately $ 162.53

7 3801F886-51 Bracket, Glass Special Order $ 38.25

8 7002P246-60 Insulation, Door Special Order $ 58.49

9 3601F380-51 Retainer, Insul. Special Order $ 25.83

10 74010546 Hinge, Door   (Replaces: 7106P124-60) In-Stock Immediately $ 77.34

11 7902P781-60 Glass, Outer Appelez-nous -
12 3608F126-71 Trim, Side Special Order $ 34.81

13 WP98008545 Screw   (Replaces: 7101P633-60) Special Order $ 15.94

14 3608F092-71 Trim, Lower Special Order $ 55.22

15 WP3196175 Screw   (Replaces: 3196165) In-Stock Immediately $ 6.47

16 W11347848 Screw   (Replaces: 7101P376-60) Special Order $ 12.20


    View Diagram in Separate Window     Print Icon   Print Part List

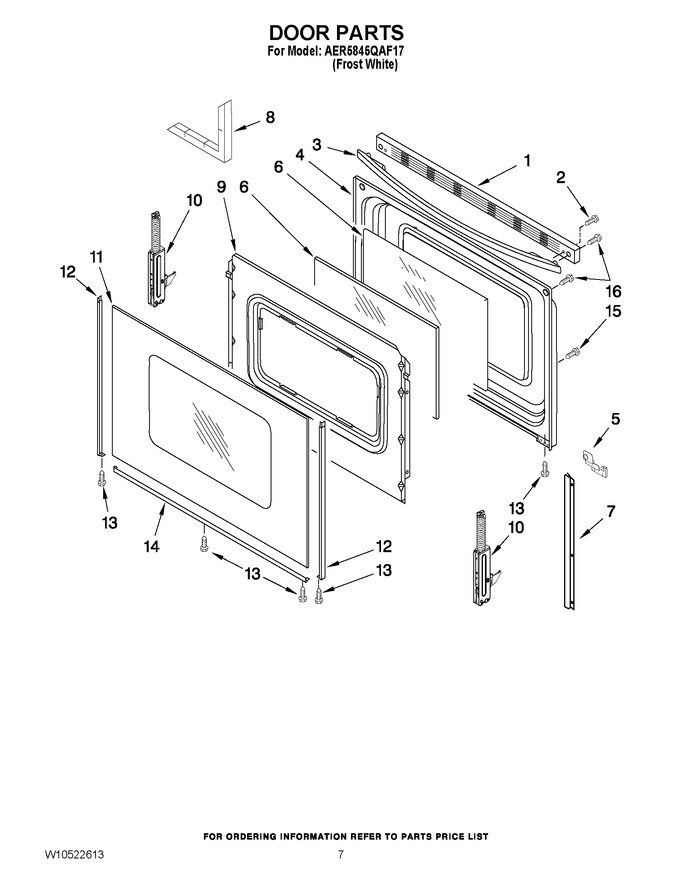

Diagram for AER5845QAF17
