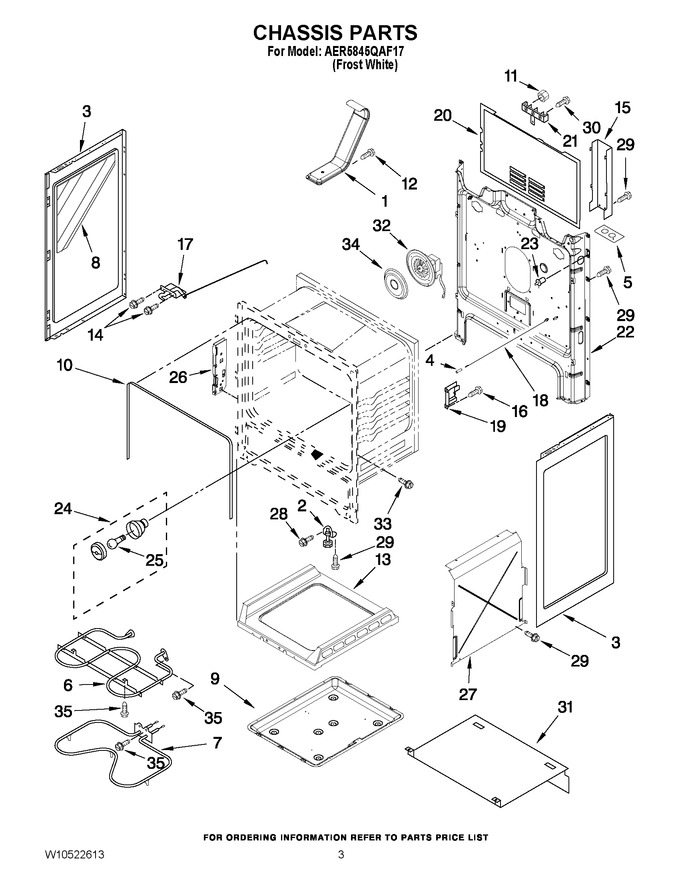

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer And Rack Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8026P081-60 | Vent Tube Asmbly |
|
- | |||||
| 2 | W11665456 | Leg, Leveling (Replaces: 7101P507-60) |
|
Immediately | $ 25.30 | ||||
| 3 | 2618F172-58 | Panel, Side |
|
$ 47.61 | |||||
| 4 | 8003P035-60 | Bumper |
|
- | |||||
| 5 | 3605F146-51 | Plate, Conduit |
|
$ 6.06 | |||||
| 6 | 7406P355-60 | Element, Broil |
|
- | |||||
| 7 | WPW10276482 | Element, Bake (hidden) (Replaces: 7406P451-60) |
|
Immediately | $ 146.10 | ||||
| 8 | W10182346 | Insulation, Side |
|
$ 77.83 | |||||
| 9 | 3401F084-45 | Pan, Bake |
|
$ 56.18 | |||||
| 10 | W11562931 | Seal, Oven (Replaces: 7201P124-60) |
|
Immediately | $ 78.98 | ||||
| 11 | WP7103P027-60 | Nut (Replaces: 7103P027-60) |
|
Immediately | $ 6.47 | ||||
| 12 | WP489491 | Screw (Replaces: 3196566) |
|
$ 6.26 | |||||
| 13 | WPW10211368 | Bottom, Oven (Replaces: 2205F053-19) |
|
Immediately | $ 287.07 | ||||
| 14 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| 15 | 4005F703-51 | Cover, Box |
|
- | |||||
| 16 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 17 | 8002P085-60 | Latch, Door |
|
- | |||||
| 18 | 7809P043-60 | Rod - Dr Switch |
|
- | |||||
| 19 | 3801P798-51 | Support, Oven |
|
- | |||||
| 20 | 4005F754-51 | Cover, Main Wire |
|
$ 87.80 | |||||
| 21 | WPW10245259 | Block, Terminal (Replaces: 7401P039-60) |
|
Immediately | $ 31.65 | ||||
| 22 | 4002F343-51 | Back, Main |
|
- | |||||
| 23 | 7403P910-60 | Switch, Door |
|
- | |||||
| 24 | WP74011278 | Light Socket Assy (Replaces: 7407P181-60) |
|
$ 101.56 | |||||
| 25 | WP9781049 | Bulb, Oven Light (Replaces: 71001867) |
|
Immediately | $ 71.93 | ||||
| 26 | WP74010551 | Brkt - Mounting (Replaces: 7106P125-60) |
|
Immediately | $ 12.60 | ||||
| 27 | 3804F311-51 | Retainer, Side |
|
- | |||||
| 28 | WP98008545 | Screw (Replaces: 3196179) |
|
$ 15.94 | |||||
| 29 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 30 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.16 | |||||
| 31 | 3604F396-45 | Shield, Heat (drawer) |
|
- | |||||
| 32 | 7427P099-60 | Assy, Fan Convect |
|
- | |||||
| 33 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 6.98 | |||||
| 34 | 3605F305-19 | Plate, Convection |
|
- | |||||
| 35 | WP3196174 | Screw (Replaces: 3196174) |
|
Immediately | $ 7.04 | ||||
| NI | 7002P362-60 | Insulation, Wrap |
|
$ 79.17 | |||||
| NI | 7002P457-60 | Insulation, Back |
|
- | |||||
| NI | 7002P361-60 | Insulation, Bottom |
|
- |
