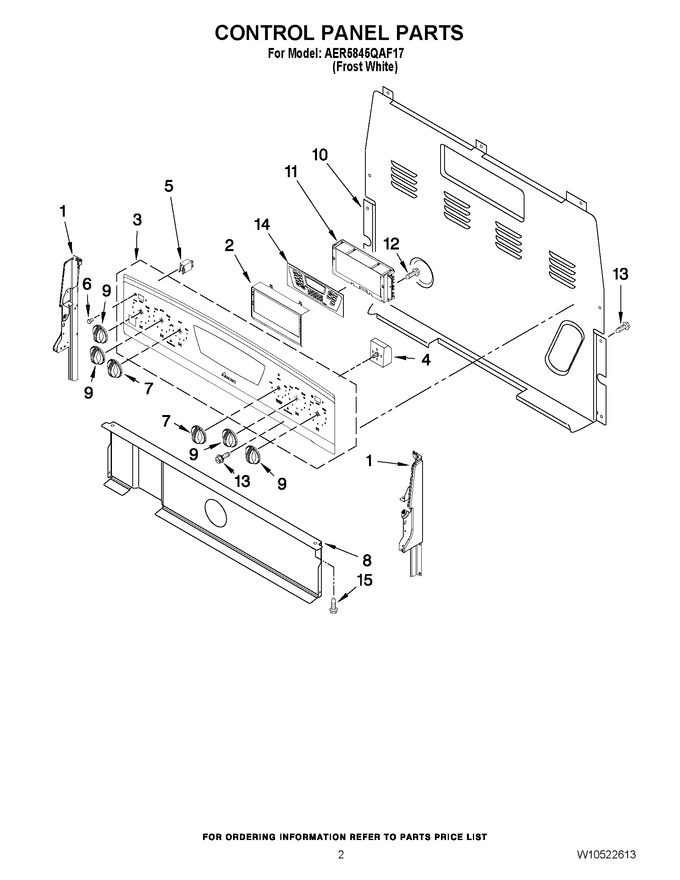

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3807F702-71 | Endcap (right Hand) |
|
- | |||||
| 1 | 3807F703-71 | Endcap (left Hand) |
|
- | |||||
| 2 | 3801F850-51 | Bracket, Console |
|
$ 65.01 | |||||
| 3 | 2602D042-81 | Panel, Control |
|
- | |||||
| 4 | WP74003122 | Switch, Infinite (dual) (Replaces: 7450P017-60) |
|
Immediately | $ 73.53 | ||||
| 4 | WP7403P238-60 | Switch, Infinite (small Element) (Replaces: 7403P373-60) |
|
Immediately | $ 57.78 | ||||
| 5 | WP74004153 | Light, Indicator (Replaces: 7407P136-60) |
|
Immediately | $ 8.02 | ||||
| 6 | WP7730P011-60 | Lens, Light (Replaces: 7730P011-60) |
|
$ 5.16 | |||||
| 7 | 7737P244-60 | Knob, Infinite |
|
- | |||||
| 8 | 3604F396-45 | Shield, Heat |
|
- | |||||
| 9 | 7737P241-60 | Knob |
|
- | |||||
| 10 | 4005F772-51 | Cover, Rear |
|
- | |||||
| 11 | 8507P293-60 | Control, Range |
|
- | |||||
| 12 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 13 | WP7101P309-60 | Screw (Replaces: 7101P309-60) |
|
Immediately | $ 6.26 | ||||
| 14 | 7450P042-60 | Switch, Membrane |
|
- | |||||
| 15 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.47 |
