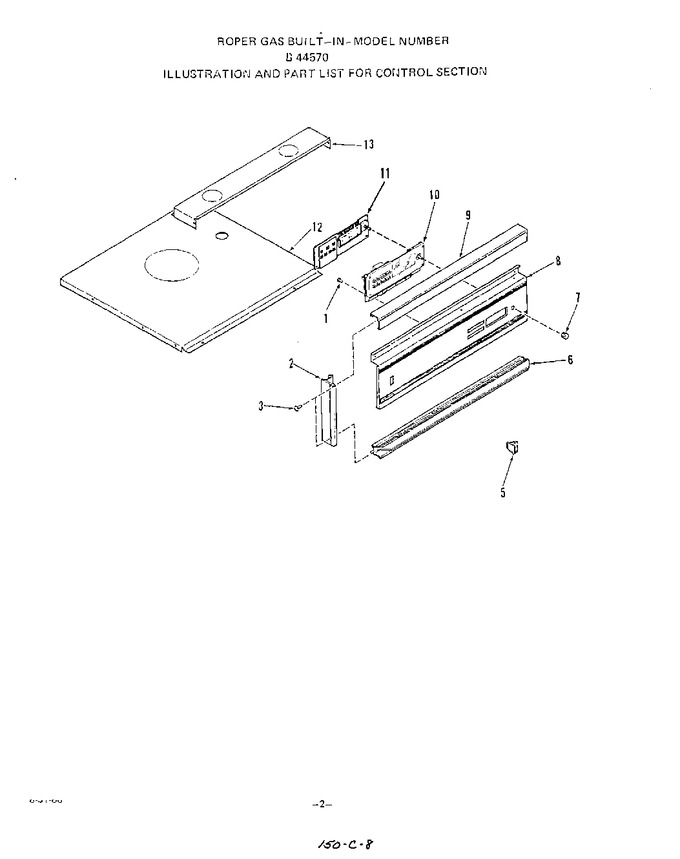

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 78153 | Screw |
|
- | |||||
| 2 | 336634 | Left |
|
- | |||||
| 2 | 336633 | Right |
|
- | |||||
| 3 | 336706 | Screw 6-32x1/2`` |
|
- | |||||
| 5 | 334649 | Switch |
|
- | |||||
| 6 | 336635 | Lower Trim-control Panel |
|
- | |||||
| 7 | 334961 | Knob-clock |
|
- | |||||
| 8 | 336655 | Control Panel |
|
- | |||||
| 9 | 336629 | Lamp Shade |
|
- | |||||
| 10 | 335646 | Clock Lens |
|
- | |||||
| 11 | 336327 | Clock |
|
- | |||||
| 12 | 338355 | Insulation Retainer |
|
- | |||||
| 13 | 323497 | Top Cover (front) |
|
- |
