SELECT A DIAGRAM

02 - Burner


03 - Control

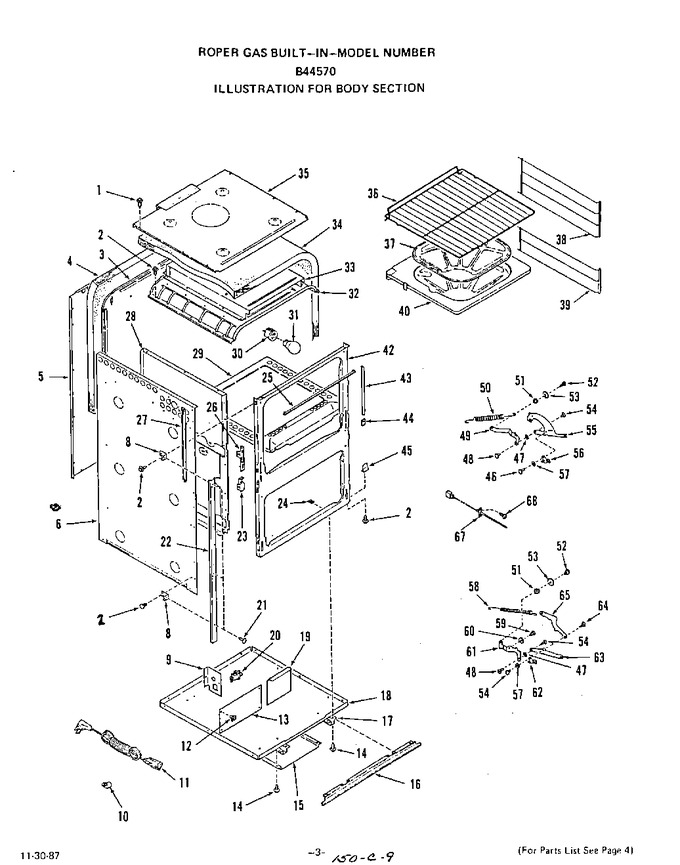

04 - Body


05 - Porcelain W/glass Oven Door


06 - Full Glass Oven Door


07 - Wire Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327320		Screw 10-16x7/16``		Appelez-nous	-
2	DE81-07393A		Screw 10 - 32 X 17/32``   (Replaces: 102428)				$ 174.11
3	336605		Oven Back		Appelez-nous	-
4	336638		Insulation-oven Back		Appelez-nous	-
5	338525		Wire Cover-oven Back		Appelez-nous	-
6	338527		Right		Appelez-nous	-
6	338526		Left		Appelez-nous	-
8	302862		Spacer-side Trim (4 Req)		Appelez-nous	-
9	327976		Disconnect Plate		Appelez-nous	-
10	106767		Clip		Appelez-nous	-
11	232132		Range Service Cord		Appelez-nous	-
12	70588		Clip		Appelez-nous	-
13	332302		Left Cover Plate		Appelez-nous	-
14	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
15	279438		Baffle-main Bottom		Appelez-nous	-
16	336627		Lower Trim-front Frame		Appelez-nous	-
17	328042		Channel-bottom (rt. Or Lt.)		Appelez-nous	-
18	338524		Main Bottom		Appelez-nous	-
19	332303		Right Cover Plate		Appelez-nous	-
20	232150		Disconnect		Appelez-nous	-
21	336706		Screw 6-32x1/2``		Appelez-nous	-
22	336624		Right		Appelez-nous	-
22	336625		Left		Appelez-nous	-
23	327977		Bracket-door Spring (2 Required)		Appelez-nous	-
24	108069		Speed Nut 10 - 32		Appelez-nous	-
25	338209		Seal-oven & Broiler Door (3 Required)		Appelez-nous	-
26	327983		Left		Appelez-nous	-
26	327984		Right		Appelez-nous	-
27	315233		Channel Trim - Lt. Or Rt.		Appelez-nous	-
28	332349		Oven Side (right)		Appelez-nous	-
28	332348		Oven Side (left)		Appelez-nous	-
29	332351		Oven Bottom W/baffle		Appelez-nous	-
30	87883		Holder-oven Lamp		Appelez-nous	-
31	339665		Oven Lamp		Appelez-nous	-
32	332350		Oven Top		Appelez-nous	-
33	323487		Vent Box		Appelez-nous	-
34	104991		Insulation-oven Top & Sides (1 Piece)		Appelez-nous	-
35	323501		Oven Cabinet Top		Appelez-nous	-
36	279539		Oven Rack (2 Required)		Appelez-nous	-
37	331851		Broiler Pan Grid		Appelez-nous	-
38	104702		Oven Rack Guide (rt. Or Lt.)		Appelez-nous	-
39	232900		Broiler Rack Guide (right)		Appelez-nous	-
39	232899		Broiler Rack Guide (left)		Appelez-nous	-
40	332306		Broiler Pan		Appelez-nous	-
42	332300		Front Frame		Appelez-nous	-
43	338210		Seal-oven Door (rt. Or Lt.)		Appelez-nous	-
44	DA97-17550A		Hinge Arm Guide Block (left)   (Replaces: 111481)				$ 186.09
44	DA97-17549A		Hinge Arm Guide Block (right)   (Replaces: 111480)				$ 200.74
45	323446		Support-broiler Door Hinge (2 Required)		Appelez-nous	-
46	103314		Shoulder Rivet		Appelez-nous	-
47	97749		Washer		Appelez-nous	-
48	97717		Rivet Sleeve		Appelez-nous	-
49	324047		Oven Door Hinge (incl. Keys 90, 91 & 94) (left)		Appelez-nous	-
49	324048		Oven Door Hinge (incl. Keys 90, 91 & 94) (right)		Appelez-nous	-
50	DD81-03879A		Spring-oven Door (2 Required)   (Replaces: 105825)				$ 154.21
51	69459		Lockwasher		Appelez-nous	-
52	288881		Bolt 1/4-20x3/8``		Appelez-nous	-
53	323451		Washer		Appelez-nous	-
54	97748		Rivet		Appelez-nous	-
55	230981		Oven Door Arm (incl`s Keys 90, 91 & 94) (left)				$ 75.37
55	230980		Oven Door Arm (incl`s Keys 90, 91 & 94) (right)		Appelez-nous	-
56	97696		Hinge Stop (right)		Appelez-nous	-
56	97697		Hinge Stop (left)		Appelez-nous	-
57	103208		Washer		Appelez-nous	-
58	307363		Spring-broiler Door (2 Required)		Appelez-nous	-
59	104735		Shoulder Rivet		Appelez-nous	-
60	104734		Roller		Appelez-nous	-
61	324036		Door Hinge (incl`s Keys 90,91 & 94) (left)		Appelez-nous	-
61	324037		Door Hinge (incl`s Keys 90,91 & 94) (right)		Appelez-nous	-
62	323456		Hinge Latch (right)		Appelez-nous	-
62	323457		Hinge Latch (left)		Appelez-nous	-
63	324039		Door Hinge Arm (incl`s Keys 90, 91 & 94) (left)		Appelez-nous	-
63	324038		Door Hinge Arm (incl`s Keys 90, 91 & 94) (right)		Appelez-nous	-
64	104629		Hinge Pivot Sleeve		Appelez-nous	-
65	323454		Spring Link-broiler Door		Appelez-nous	-
66	281160		Accordian Rivet		Appelez-nous	-
67	338242		Sensor		Appelez-nous	-
68	120855		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
