02 - Burner
03 - Control
04 - Body

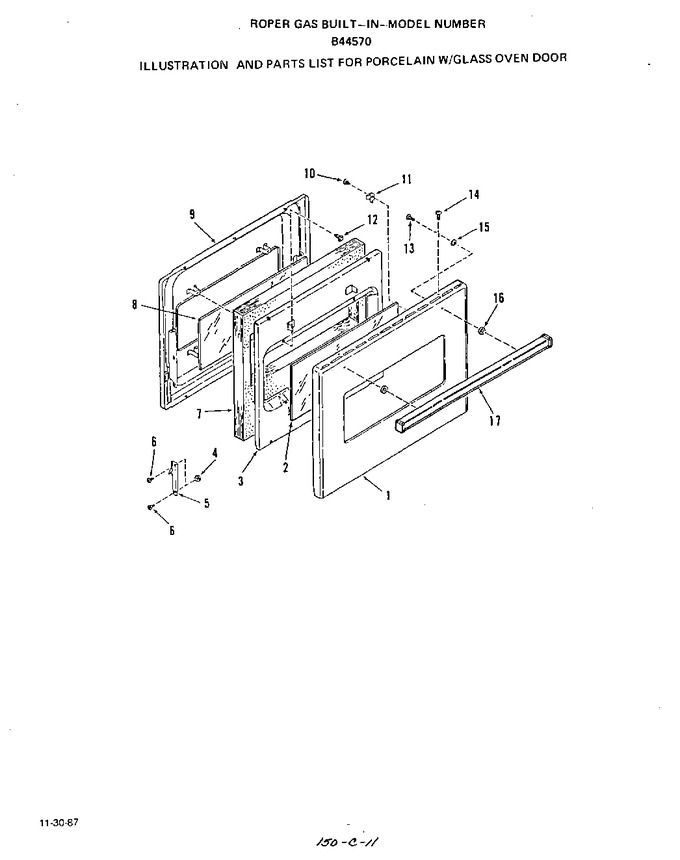

05 - Porcelain W/glass Oven Door
06 - Full Glass Oven Door
07 - Wire Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 336904 | White |
|
- | |||||
| 1 | 336905 | Almond |
|
- | |||||
| 1 | 336906 | Wheat |
|
- | |||||
| 1 | 336895 | White |
|
- | |||||
| 1 | 336897 | Wheat |
|
- | |||||
| 1 | 336896 | Almond |
|
- | |||||
| 2 | 284626 | Door Glass-outer (oven & Broiler) |
|
- | |||||
| 3 | 299558 | Broiler Door W/glass |
|
- | |||||
| 3 | 299549 | Oven Door W/glass |
|
- | |||||
| 4 | 097816 | Hex Nut 10-32 |
|
- | |||||
| 5 | 325201 | Right |
|
- | |||||
| 5 | 325203 | Left |
|
- | |||||
| 6 | 97709 | Shoulder Bolt-lt. Or Rt. |
|
- | |||||
| 7 | 299782 | Oven Door W/glass |
|
- | |||||
| 7 | N/A | Insulation |
|
- | |||||
| 7 | 299783 | Broiler Door W/glass |
|
- | |||||
| 8 | 111887 | Broiler Door W/glass |
|
$ 12.84 | |||||
| 9 | 332305 | Broiler W/glass |
|
- | |||||
| 9 | 331853 | Oven W/glass |
|
- | |||||
| 10 | 239113 | Screw 10-32x3/8`` |
|
- | |||||
| 11 | 299592 | Retainer-door Glass (4 Req) |
|
- | |||||
| 12 | WP112432 | Screw 10-32x7/16`` (Replaces: 311484) |
|
$ 7.16 | |||||
| 13 | 300864 | Screw 10-32x3/4`` |
|
- | |||||
| 14 | 336152 | Screw |
|
- | |||||
| 15 | 69603 | Lockwasher |
|
- | |||||
| 16 | DE81-05147A | Spacer (Replaces: 107158) |
|
$ 205.79 | |||||
| 17 | 336205 | Oven Door Handle (upper & Lower) |
|
- |
