SELECT A DIAGRAM

02 - Burner


03 - Control


04 - Body


05 - Porcelain W/glass Oven Door


06 - Full Glass Oven Door


07 - Wire Harness

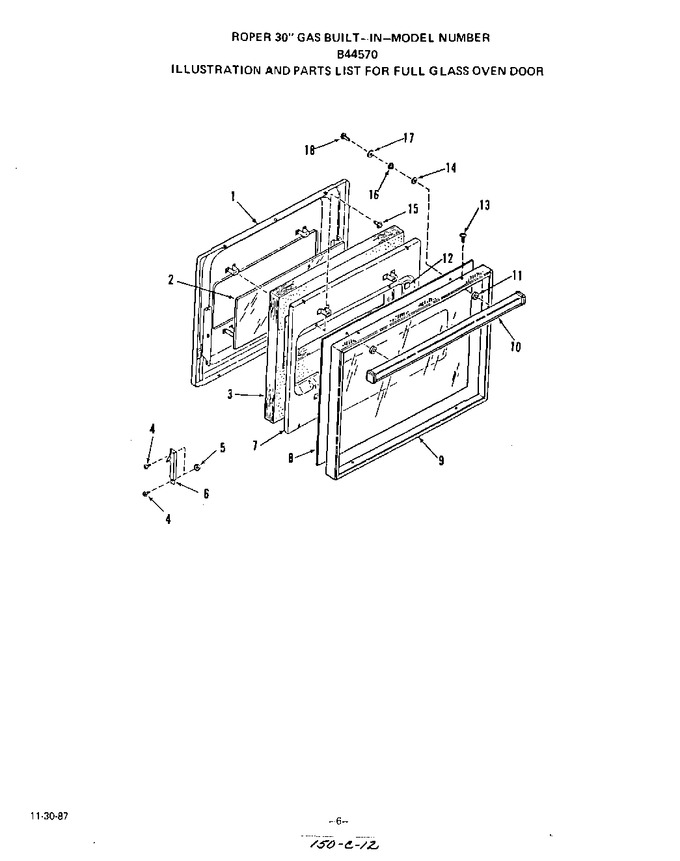

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	331853		Upper		Appelez-nous	-
1	332305		Lower		Appelez-nous	-
2	111887		Door Glass Inner (upper & Lower)				$ 12.84
3	299782		Upper		Appelez-nous	-
3	299783		Lower		Appelez-nous	-
4	97709		Screw		Appelez-nous	-
5	97816		Hex Nut 10-32		Appelez-nous	-
6	325201		Right		Appelez-nous	-
6	325203		Left		Appelez-nous	-
7	322099		Lower		Appelez-nous	-
7	322096		Upper		Appelez-nous	-
9	336212		Upper		Appelez-nous	-
9	336213		Lower		Appelez-nous	-
9	336206		Lower		Appelez-nous	-
9	336207		Upper		Appelez-nous	-
10	336205		Door Handle (upper & Lower)		Appelez-nous	-
11	DE81-05147A		Spacer, Door Handle   (Replaces: 107158)				$ 205.79
12	299314		Spacer (4 Req.)		Appelez-nous	-
13	331704		Screw		Appelez-nous	-
14	333014		Washer-fiber		Appelez-nous	-
15	104520		Screw 10-32 X 17/32``		Appelez-nous	-
16	333015		Spacer		Appelez-nous	-
17	99279		Washer		Appelez-nous	-
18	300864		Screw 10-32x3/4``		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
